Description
Single Sided Lithium Battery Spot Welder
,
Rotary Head Lithium Battery Spot Welder
,
Single Sided Automatic Spot Welder
Single Sided Automatic Lithium Battery Spot Welder Rotary Head Type
Equipment introduction
● This lithium battery spot welding machine is a multi-axis control machine developed by modern automation experts, combining precision transmission and automatic walking mechanism of the motor control mechanism, effectively control the real-time processing of automated production equipment.
● The equipment is suitable for 18650, 21700, 26650, 32700 and other cylindrical unit combination automatic single side spot welding.
● CBMO4-1710 lithium battery welding single-sided machine adopts automatic flipping welding fixture design. After the A-side welding is completed, it can be automatically turned over to B-side welding without manually turning the fixture.
● CHEEBO battery welding head automatic spot welding machine can be rotated 135°, suitable for welding irregular shape nickel plate, effectively avoid the phenomenon of sticking needles in the welding process.
● Grating protection devices are installed on both sides to ensure the safe operation of the equipment.
● Blast welding and virtual welding equipment will automatically alarm, automatic zone repair welding and single spot repair welding will be manually adjusted.
● Taiwan silver guide rail module, high precision, low noise, smooth sliding, durable.
● Panasonic servo, fast welding speed, high precision.
● HD LCD touch screen, human-machine interface, easy to operate.
● Independently develop a variety of automated intelligent systems to facilitate equipment operation and help improve production efficiency.
● With energy switching function, production counting function, welding needle compensation function, manual debugging function, etc., can assist the intelligent operation of equipment.
● Manual programming, CAD drawing, importing spot welding path, and quickly executing programming. Easy to learn, fully qualified as a production line worker.
● Aluminum alloy structure, electrostatic powder spraying process, anti-scratch, anti-rust, anti-static.
● Imported acrylic protective plate, beautiful, strong sense of science and technology, intuitive operation, improve the production safety factor.
Technical specification
| Production efficiency | 3800PCS/H | Welding head rotation Angle | 1/CFM |
| Welding thickness | 0.02-0.3MM | Relocation accuracy | 0.1mm |
| Simplex welding stroke | 170MM*100MM | Platform load | 35KG |
| XY shaft welding accuracy | 0.1MM | Welding pressure | 5KG/F |
| Welding head rotation Angle | 0°-135° | Welding pressure | 600*900*1420MM |
| XY shaft welding stroke | 170MM*100MM | Machine Weight | 330KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery welding |
Function Introduction

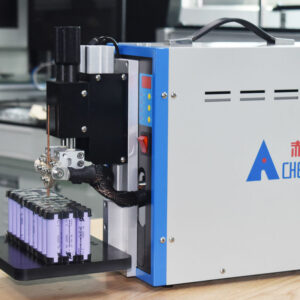

1. Transistor welding power supply
Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.
2. Precision servo welding head
The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.
3. Safety grating protection
Security grating protection is installed on both sides to prevent injury to personnel when the equipment is running. When the equipment is working, if there are items into the machine working area, the equipment will automatically stop.
FAQ
Q:What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q :How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
