Equipment Description:
A highly intelligent specialized welding equipment designed to solve the two core problems of “diversion” and “thick plate/foreign material welding”.
●Intelligent Series-Parallel Electrical Design: The system can automatically switch between series and parallel modes in the program based on the position of the solder joints and the process requirements.
●High quality: During double-sided spot welding, the current flows vertically through the workpiece, concentrating the heat, which makes it easier to form a full and symmetrical weld core.
●Application specialization: Suitable for multi-layer, dense, and high-demand solder joints, and applicable to multi-layer board stacking welding and welding of special materials such as aluminum alloy/high-strength steel.
- Pre welded rows for multi row battery packs.
- Automatic strip cutting, reserved welding positions for total positive and negative, polarity conversion combination arrangement.
- Single row battery pack welding, specialized and highly automated double-sided spot welding, automatic tape transfer, Combine 12 battery cells in series/parallel at will, such as 1S12P-2S6P-3S4P-4S3P-6S2P-12S1P, etc.

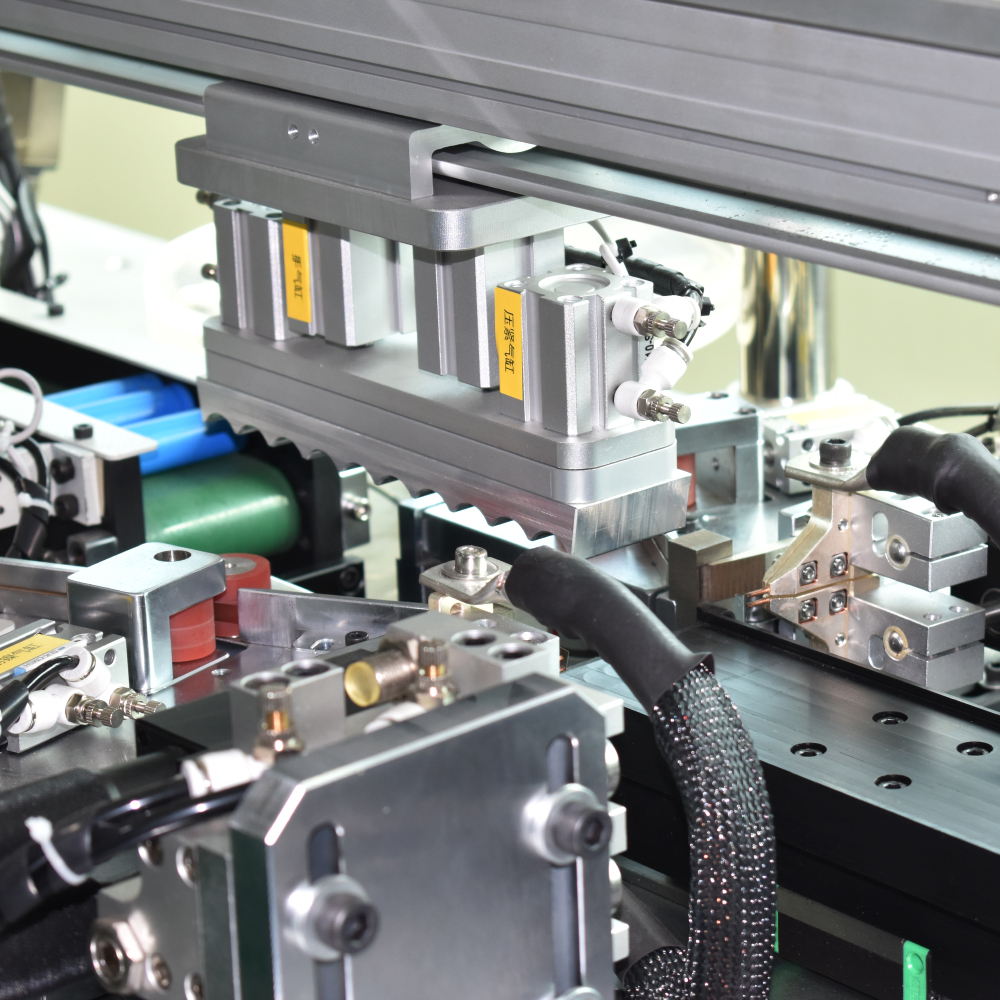

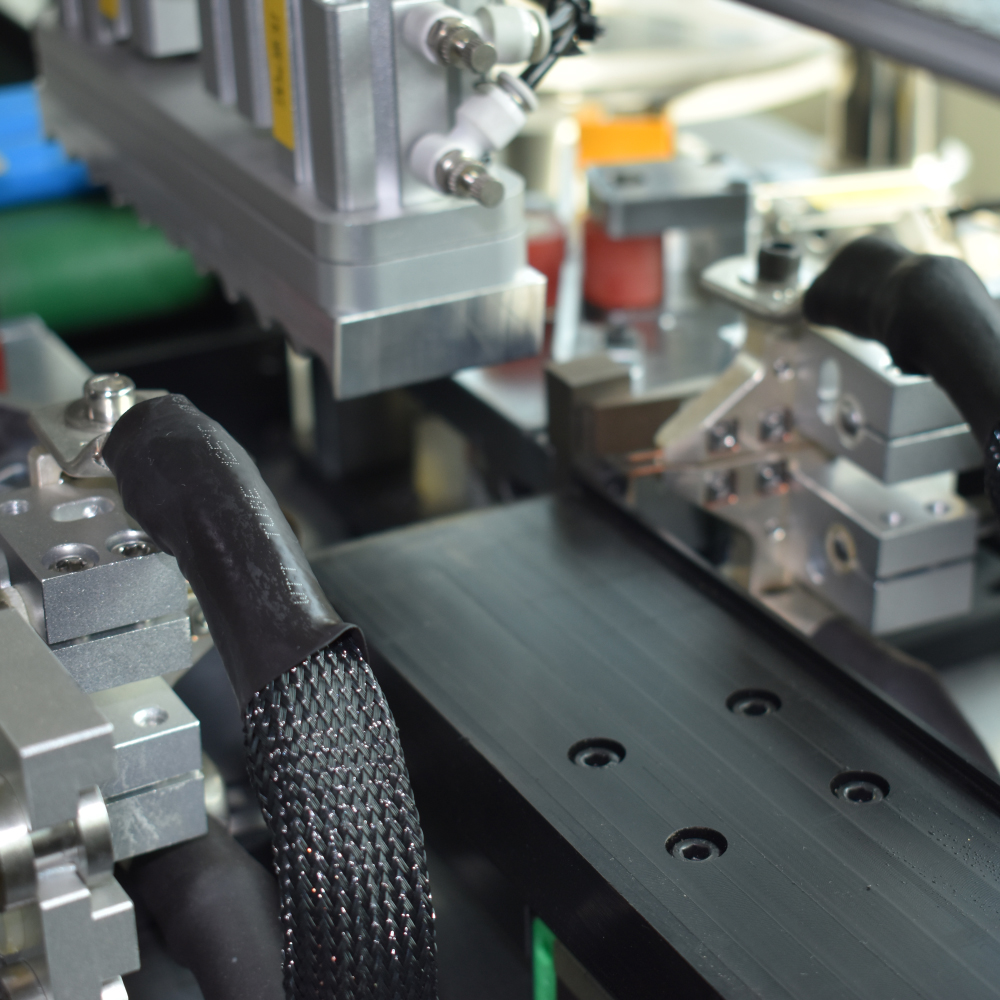

- Adopting a dual welding head workstation for welding, both positive and negative electrodes are welded simultaneously to improve production efficiency.
- After setting the parameters, the entire box is directly soldered into the battery cell equipment to produce the finished product.
- Adopting an automatic welding plate feeding device, there is no need for manual placement of nickel plates, which is simple, convenient, and saves labor.
Technical Specs details presentation
| Main technical specifications | |
| Equipment capacity | 30-40PPM |
| Compatible Battery | 18650 |
| Compatible Modules | Customizabl |
| Welding thickness | 0.02-0.3MM |
| Repositioning accuracy | ±0.01 |
| Welding head rotation angle | 0~135° |
| Welding power source | Transistor/Multi pulse |
| Weld pressure | 5KG/F（Adjustable） |
| Cooling method | Natural cooling |
| Driving method | pneumatic |
| Size weight | 1300*700*1400MM 220KG |
| Power | 220V 50/60HZ |

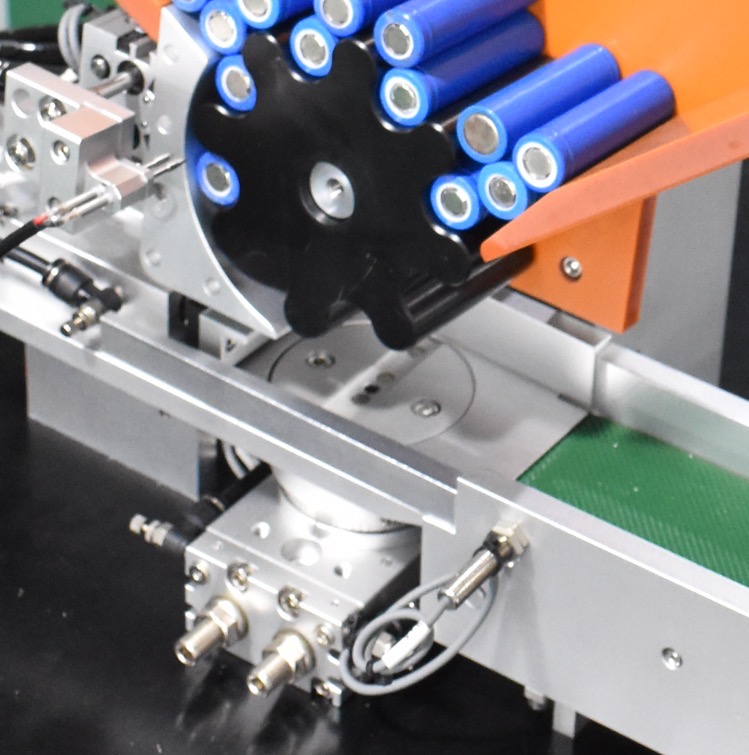

Smart Polarity Reversal Function
Automatically identifies and adjusts the positive and negative polarity orientation of battery cells to ensure precise welding and eliminate human error.

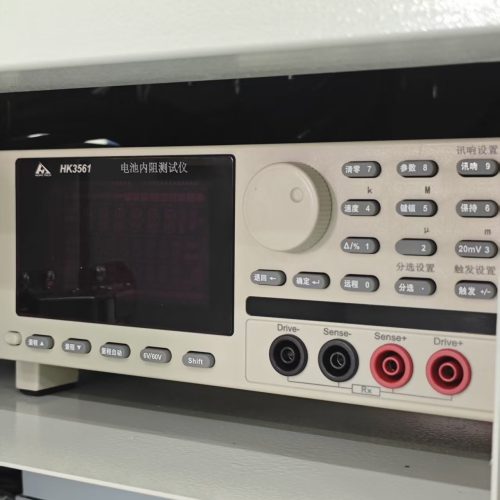

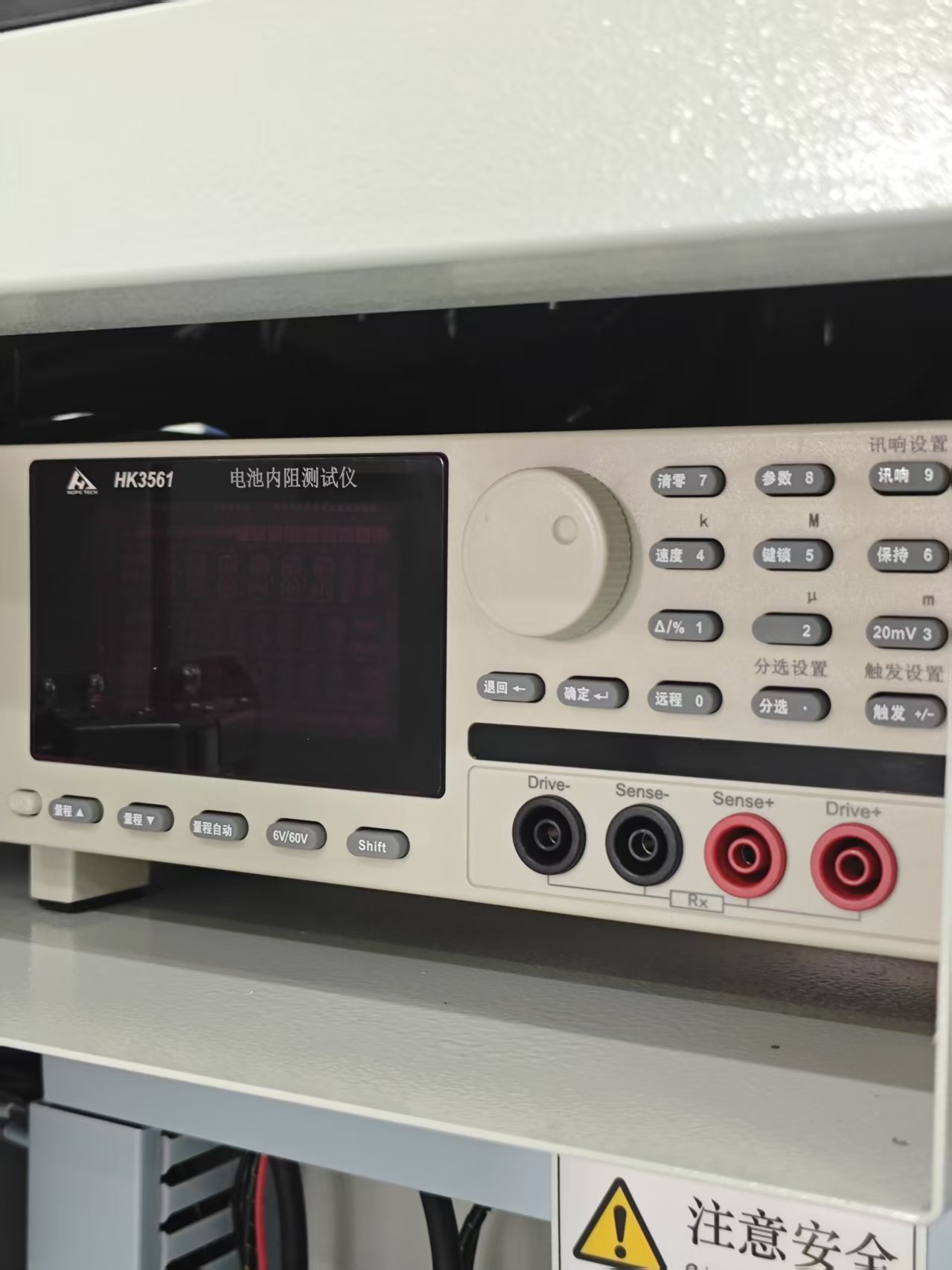

Internal resistance testing function
Combined with an internal resistance tester, it can promptly detect whether the voltage and internal resistance of the battery cell meet the requirements, ensuring the yield rate.

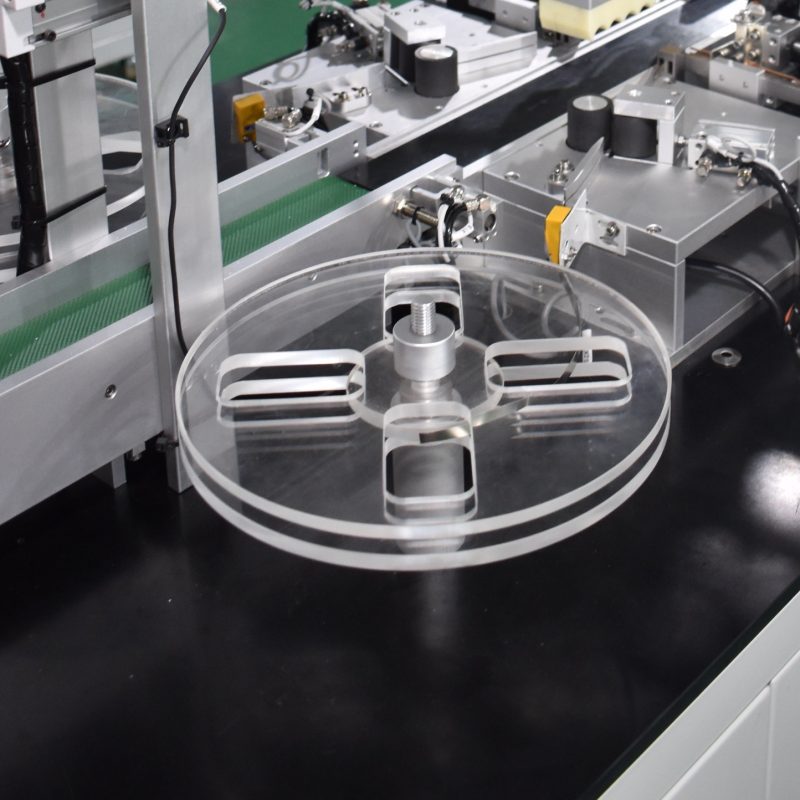

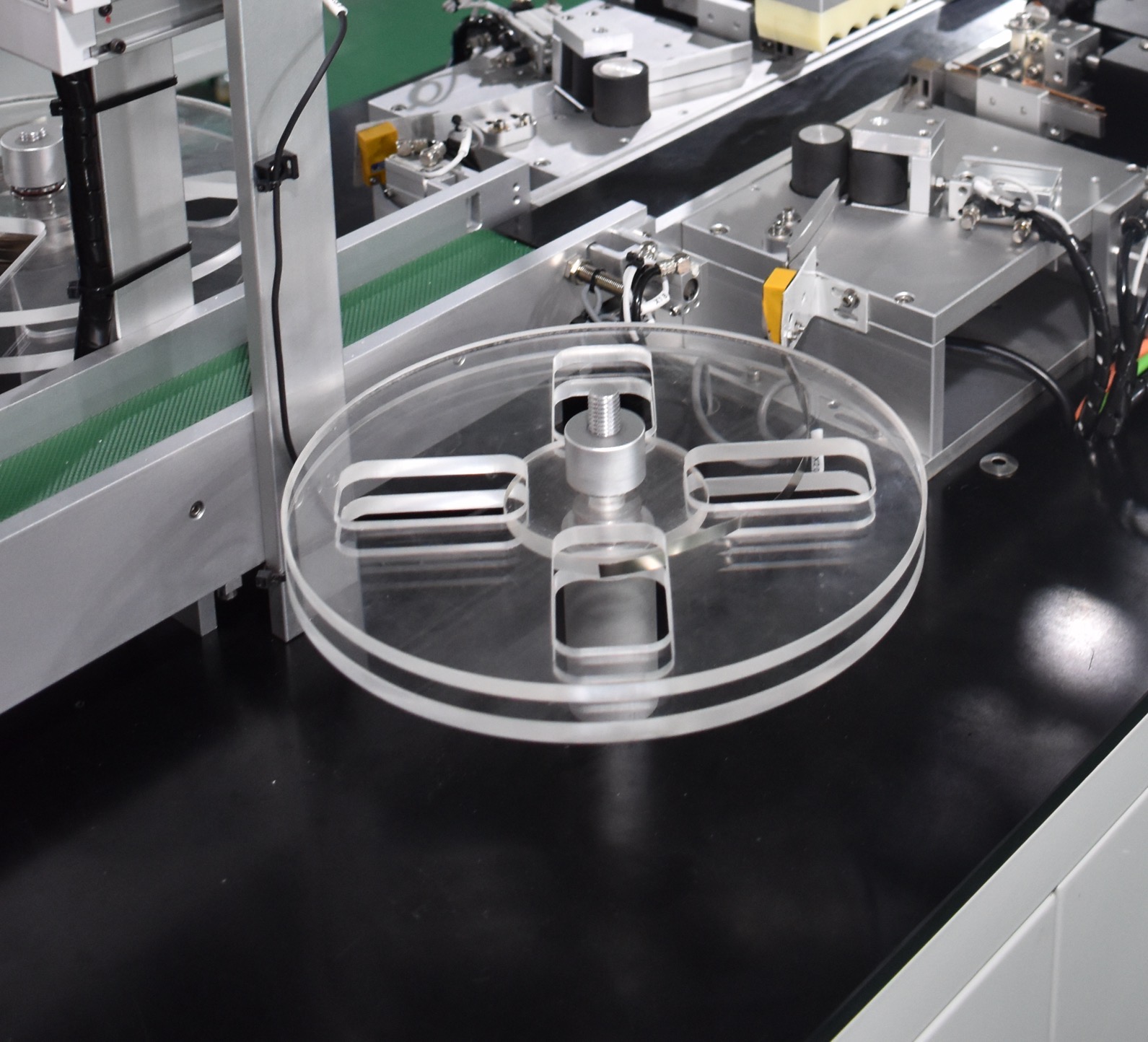

The length of the nickel sheet can be adjusted.
The length of the nickel sheet that extends out can be customized according to the requirements of the battery pack, and it can be compatible with various product specifications.
Multiple sets of schemes storage
It can store multiple sets of welding schemes, and they can be called up with one click, suitable for small-batch and multi-variety production.
