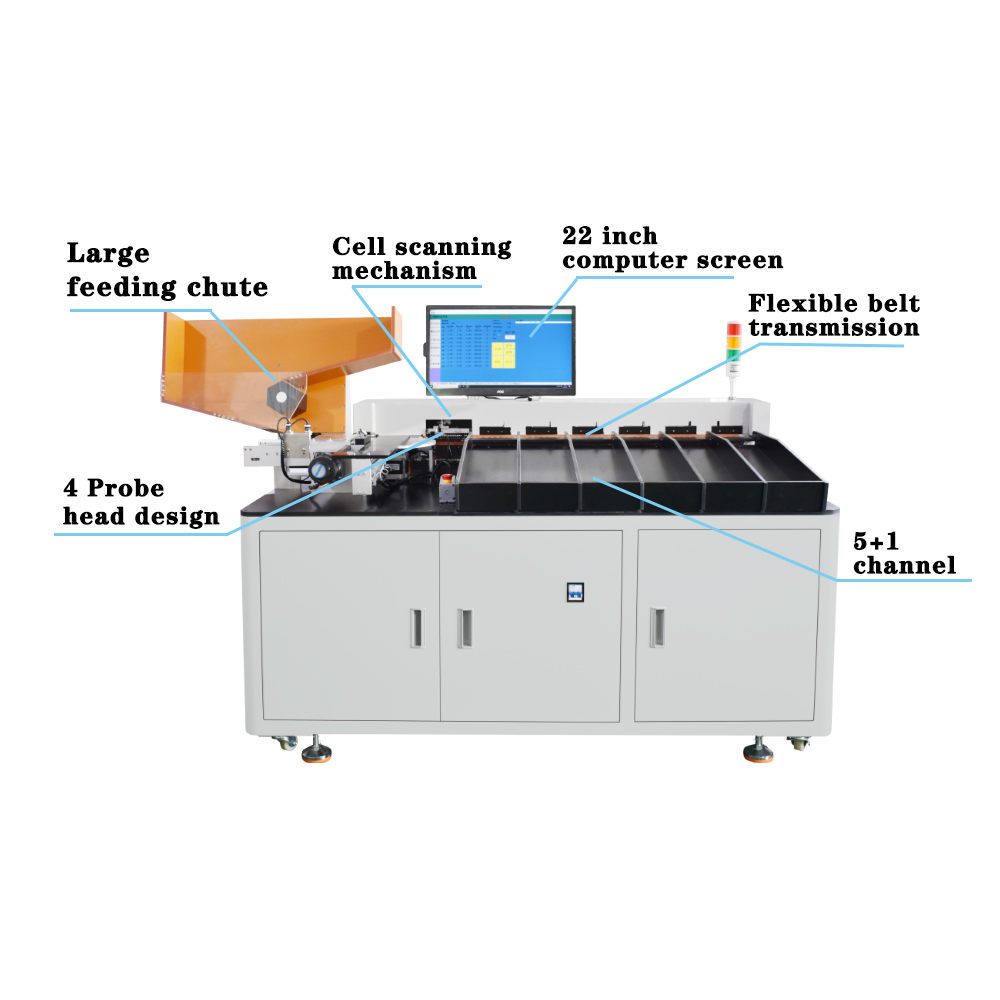

Scanning model 6-gears sorting machine

Equipment Description:
An intelligent device integrating barcode scanning recognition and six-level precise sorting.
●Data binding: Real-time and precise association and binding of sorting results with the unique codes of materials to form complete data records.
●Flexible configuration production: The gear positions are clearly defined, and the sorting parameters can be quickly switched according to different product barcodes or instructions. Combined with high-precision sensors, it can meet the fine grading requirements of most scenarios.
●Real-time monitoring and error prevention: The system conducts real-time monitoring of the success rate of barcode scanning and sorting results, and automatically eliminates products with no barcodes, duplicate barcodes, or abnormal sorting.






										Suitable for assembling cylindrical battery packs of equal length 32140/33140.

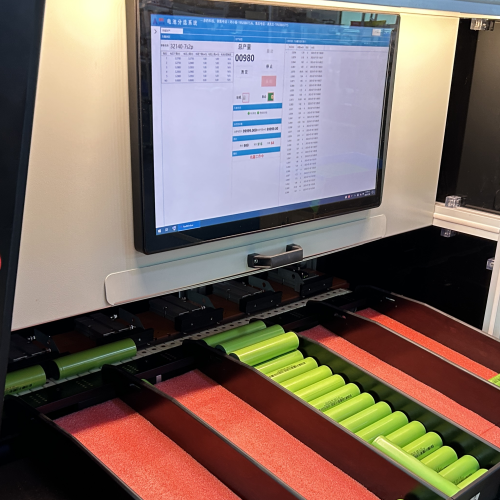

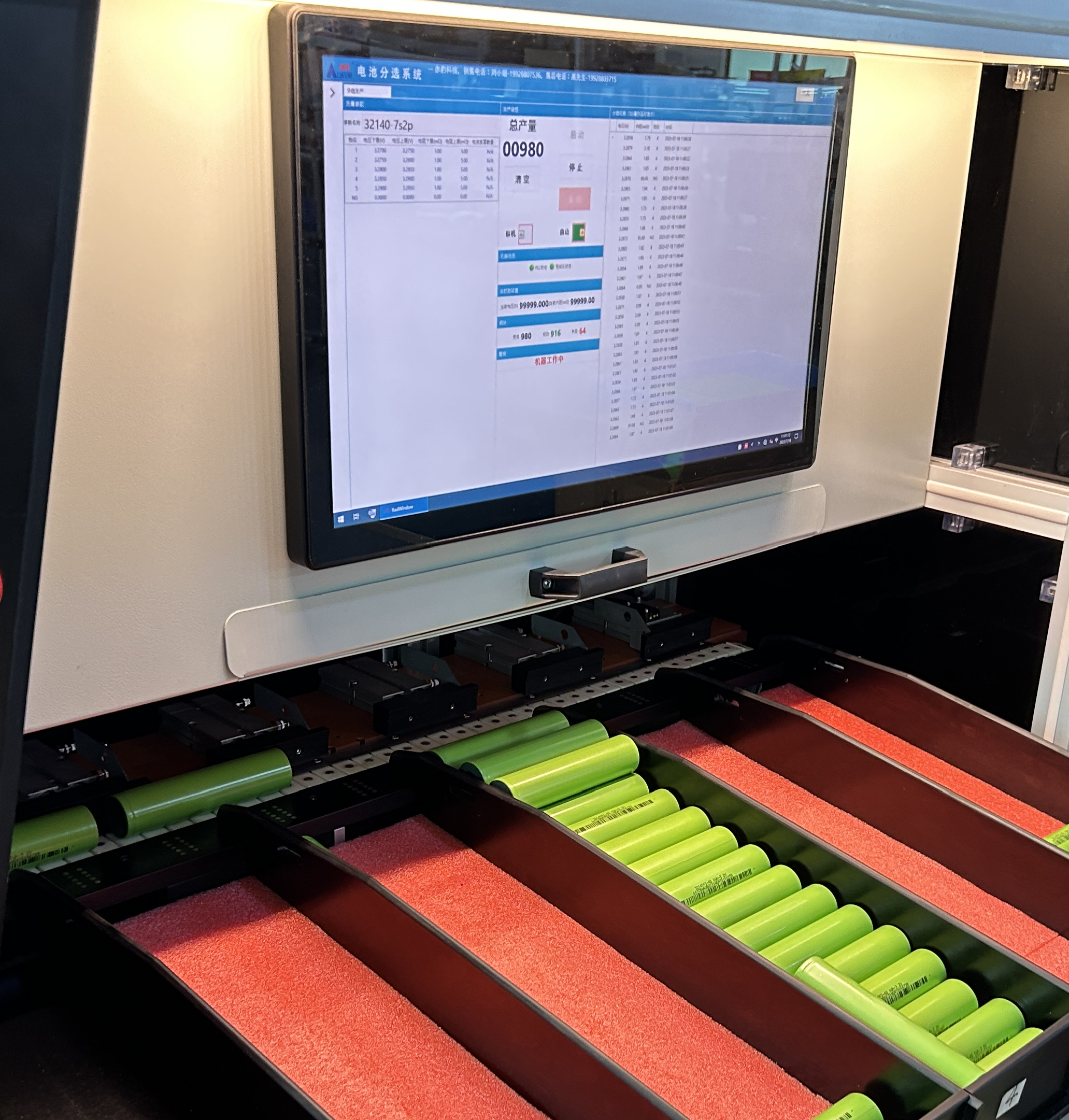

										The 22 inch display screen displays sorting data in real-time, with clear and observable data.




										The core components of the whole machine are imported high-performance, with precise control and low failure rate.

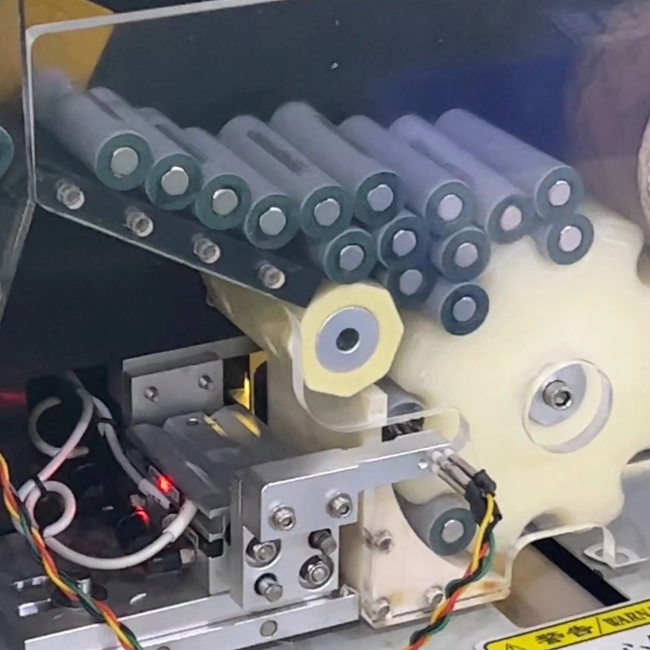

										Equipped with scanning function, can be paired with multiple scanners, supports QR code barcode scanning, fast and convenient.




										Using high-precision screening algorithms and detection techniques, accurately detect cell voltage and internal resistance,and perform gear sorting on them.




										Direct design, able to adapt to different production environments and production needs, with strong environmental adaptability and stability.




										With manual parameter modification function, it can be fine tuned for each gear, and can also be adjusted using the function modification function.




										Easy to operate interface with one click production function, Simply start the voltage resistance and enter the corresponding interval to complete the parameter setting.







Technical Specs details presentation


Main technical specifications
Equipment capacity
50-60PPM
Compatible with batteries
32140-33140
Sort gears
5+1
Tester
HIOKI/HEPU
Sort parameters
Open circuit voltage, AC internal resistance
Driving method
pneumatic
Size weight
1560*970*1480mm 210KG
Power
220V 50/60HZ


Real-time Data Monitoring and Export

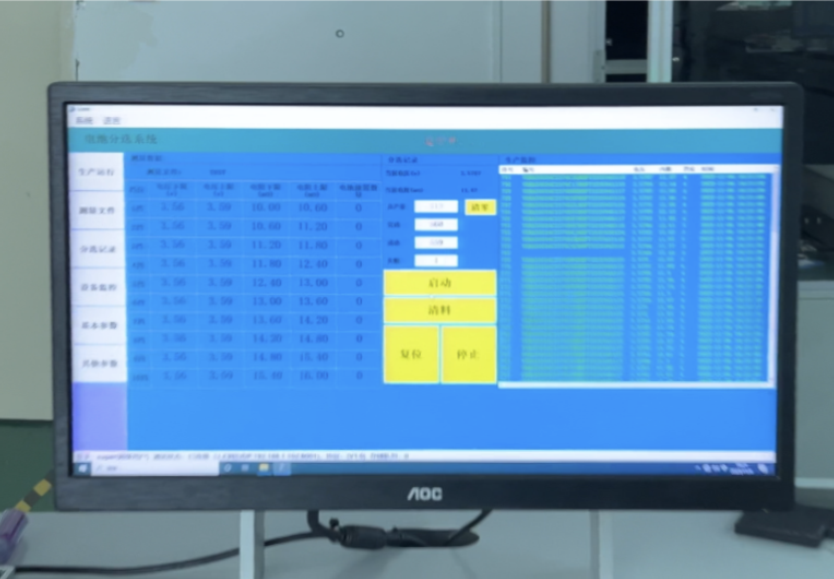

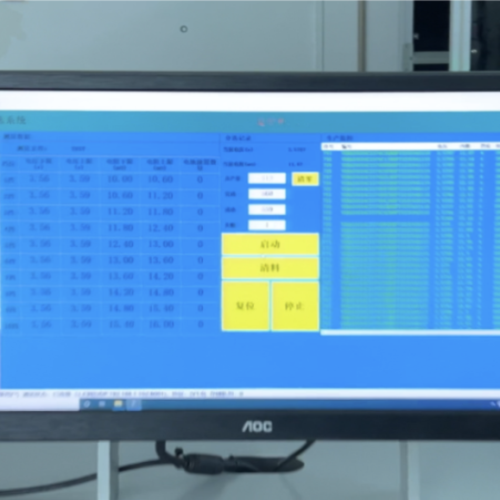

Industrial control computers display sorting data in real time, supporting querying, saving, and exporting for easy analysis and traceability.


Smart K-Value Comparison Function
Supports importing data for K-value comparison and sorting (optional configuration), suitable for customers requiring high consistency.


Barcode scanner
Open RS-485 communication interface, optional scanner available, supports data upload to MES system.


Closed-Loop Servo Drive System
Features closed-loop stepper motors for smoother operation, more precise positioning, and no drift over extended use.
