Description
Resistance Type Portable Battery Spot Welder
,
AC Portable Battery Spot Welder
,
Resistance Type Lithium Ion Battery Welder
Portable Spot Welding Machine Copper Plate/Aluminum Plate Metal Sheet Resistance Welding
● Suitable for welding hardware parts, electronic and electrical parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc.
● Through single-chip control, single-pulse, multi-pulse and double-pulse welding can be realized.
● Proprietary output energy optimization algorithm is adopted, the output voltage and output current conversion is reasonable, the welding ability is strong, the welding joint is firm, there is no welding error, low ignition, and the surface quality is excellent.
● The self-developed pneumatic precision welding head ensures precise adjustment and control of pressure.
● Independent welding needle, spring buffer design, accurate adjustment of welding pressure.
● The welding head platform can be adjusted up and down, and can weld various batteries.
● All parameters are set by numbers, and the parameter adjustment is stable, intuitive and accurate.
● Vertical spot welding is adopted, and the pressure depth of welding head can be adjusted.
● Digital LED display, the adjustment of equipment parameters is more intuitive, easy to learn and operate.
● Microcomputer technology control, grid voltage control, automatic tracking compensation.
● The portable spot welding machine adopts an integrated design, which saves space and is easy to carry.
● The welding machine can store multiple programs, which can be changed and called freely.
● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.
- Welding pressure: 1-10 kg
- Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
- Air pressure regulation
- Adjustment of needle extension length
- Adjust the lower position of the welding head
- Adjust the spacing between the left and right pins
1. Wire terminal 2. Metal sheet welding 3. Hardware welding 4. Metal jewelry welding
| Welding thickness | 0.04-0.2MM | Welding power supply | Multiple-pulse |
| Welding material | Metallic | Welding needle | Optional as required |
| Supply current | 3600A | Welding speed | 200P/M |
| Spot welding method | Dutt welding | Welding pressure | 5KG/F |
| Equipment power | 3KW/7KW/12KW | Equipment size | 560MM*170MM*330MM |
| Driving mode | Pneumatic | Machine Weight | 20KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
1. Pressure regulation
The pressure of welding head can be adjusted in the range of 1 ~ 1- 10kg, so as to ensure good welding effect with different thicknesses and materials.

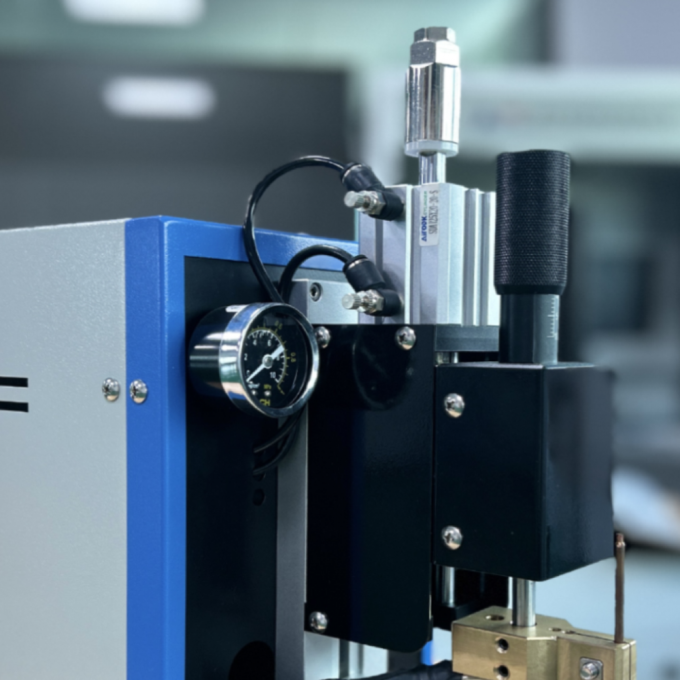

2. Pneumatic precision welding head
Horizontal welding structure, double-line guide rail design, left and right pressure can be adjusted independently. Built-in pressure sensor, precise control to apply stable pressure.

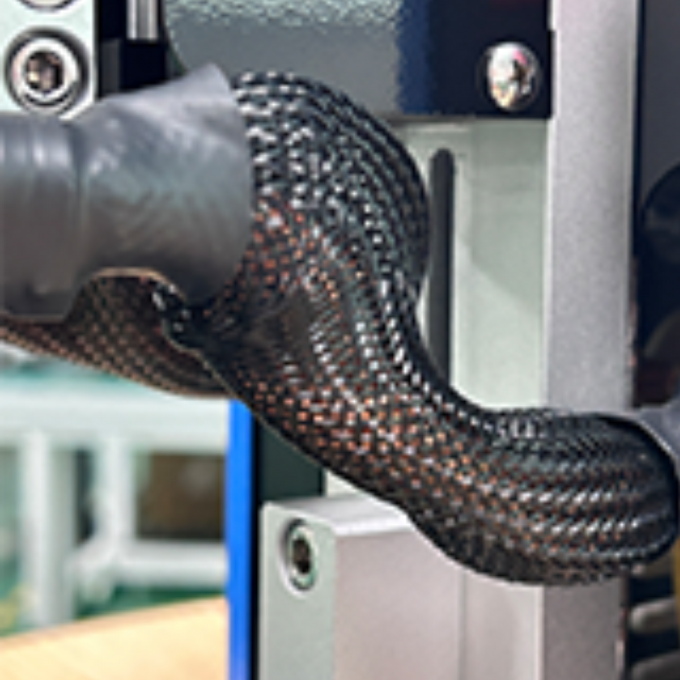

3. High quality cable
Pure copper cable, with low conductor resistance, large current-carrying capacity and thick enough, does not generate heat when welding.
- Polish the welding needle regularly.
- Regularly check whether there is loosening in each part.
- Do not disassemble circuit components without permission.
- Periodically clean welding dust from all parts of the device.
- Check the lubrication degree of each moving part every month
- Please read the instructions carefully before operation and operate according to the specifications of the instructions.
