Pneumatic Lithium Cell Spot Welding Machine
,
Horizontal Lithium Cell Spot Welding Machine
,
Pneumatic Li Ion Spot Welder
High-Power Battery Tab Spot Welding Machine Battery Pneumatic Spot Welder
● Product scope: power lithium-ion battery module, 3C lithium-ion battery pack, nickel-metal hydride battery pack, hardware, electronic and electrical parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. It is also suitable for product maintenance proofing and other work.
● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and easy to operate.
● Self-developed precision welding head, accurate pressure regulation control.
● Proprietary output energy optimization algorithm, reasonable output voltage and output current transformation, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.
● Microcomputer technology control, control grid voltage, automatic tracking compensation.
● Applicable battery specifications: minimum no less than 50MM, maximum no more than 130MM.
● High quality tempered glass is used to protect the desktop from wear during welding.
● Vertical spot welding method is welding, manual control of pressure depth.
● The welder can prestore multiple programs, which can be changed and called at will.
● Compact structure, small size, large power, large industrial circuit design, safe and reliable welding process.
| Welding thickness | 0.02-0.18MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 130MM (Maximum pitch adjustable) |
| Supply current | 3000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |

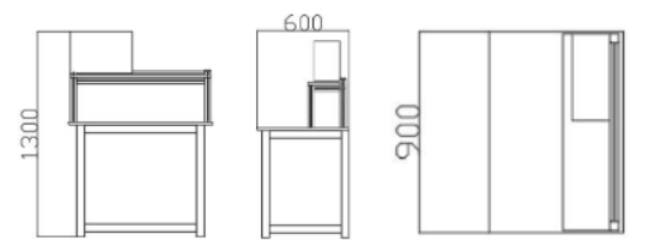

| Equipment power | 12KW | Equipment size | 600*900*1300MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Power on – display 600 OE self-test screen – press the up arrow to enter the system – Place the product to be welded on the table – pedal –
press the welding head – spot welding completed – welding head return
1. Bold cable
Thick pure copper cable, low resistance wire, high current carrying capacity, thick enough, welding does not generate heat, and current is transmitted to the welding head without loss, ensuring welding current.

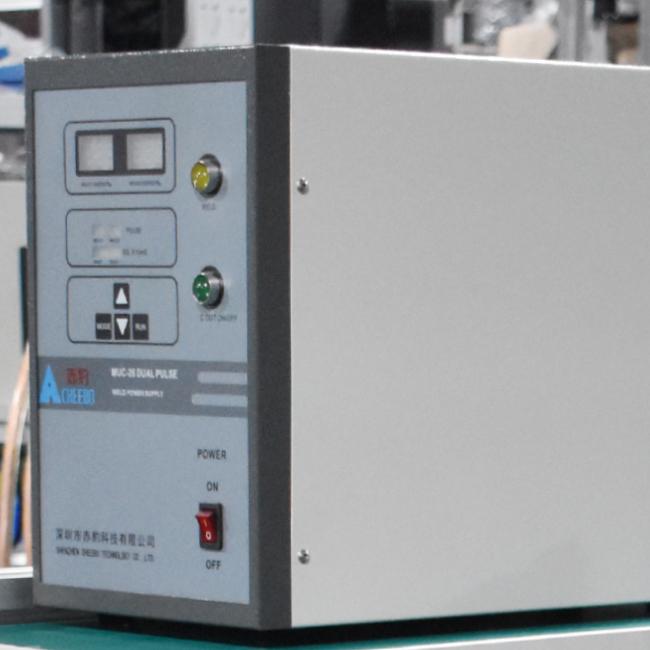

2. Multi-pulse welding power supply
Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.

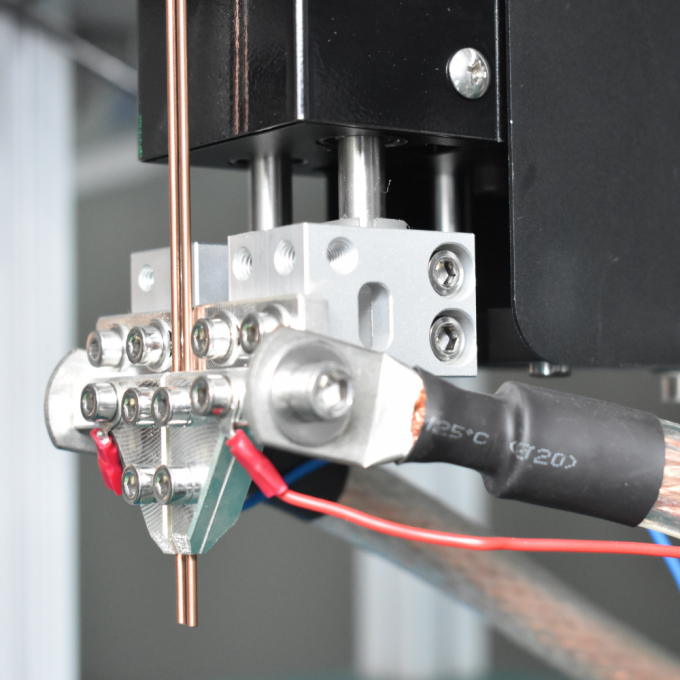

3. Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
