Description
Pneumatic Lithium Battery Spot Welder
,
Gantry Frame Lithium Battery Spot Welder
,
Pneumatic Spot Welder For Battery Packs
CBLQ-23 Pneumatic Longmen Frame Precision Lithium Battery Spot Welder
● Double-section multi-pulse design, improve the energy output waveform, improve the welding capacity.
● Microcomputer technology control, monitoring the grid voltage, automatic compensation.

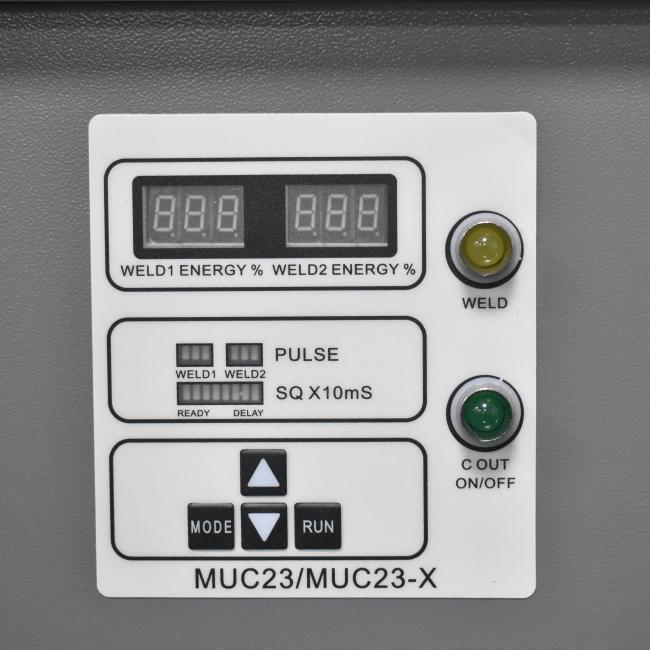

● Digital LED display, convenient and intuitive adjustment of equipment parameters, and the equipment can pre-store multiple programmes.
● Equipment performance is stable, technology is mature, cost-effective, well received by users.
● The high-quality tempered glass is used to protect the desktop from abrasion during the welding process.
● Adopting vertical spot welding method for welding, manually controlling the pressure depth.
● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding for a long time.
Power lithium-ion battery pack welding, 3C lithium-ion battery pack of welding, nickel-metal hydride battery pack welding, small hardware welding,
electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewellery welding, copper products welding,
aluminium products welding. Also suitable for product maintenance, sampling and other welding work.
| Welding thickness | 0.02-0.15MM | Welding power supply | Multiple-pulse |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 130MM (Maximum pitch adjustable) |
| Supply current | 2800A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Equipment power | 7KW | Equipment size | 600*900*1150MM |
| Driving mode | Pneumatic | Machine Weight | 48KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Power on — display 600 OE self-test screen — press the up arrow to enter the system — Place the product to be welded on the desktop —
Step on the pedal — push down the welding head — spot welding completed — return the welding head
1. Cylinder drive

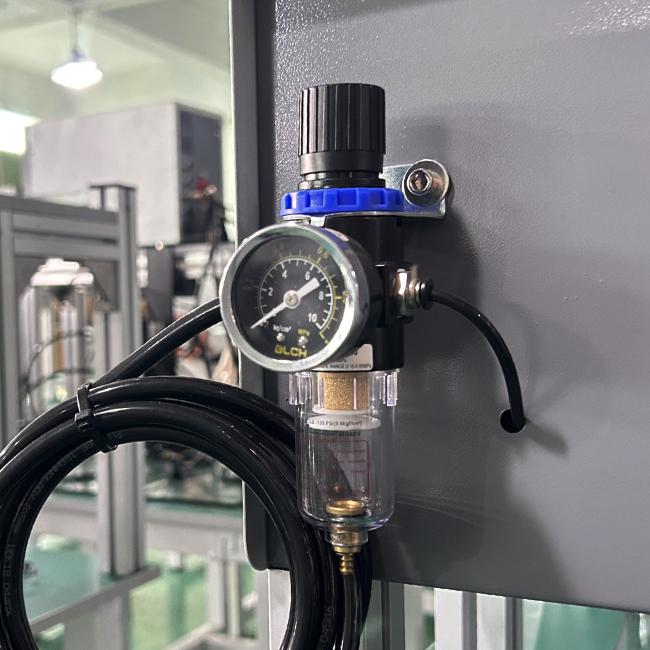

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.
2. Multi-pulse welding power supply
Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.

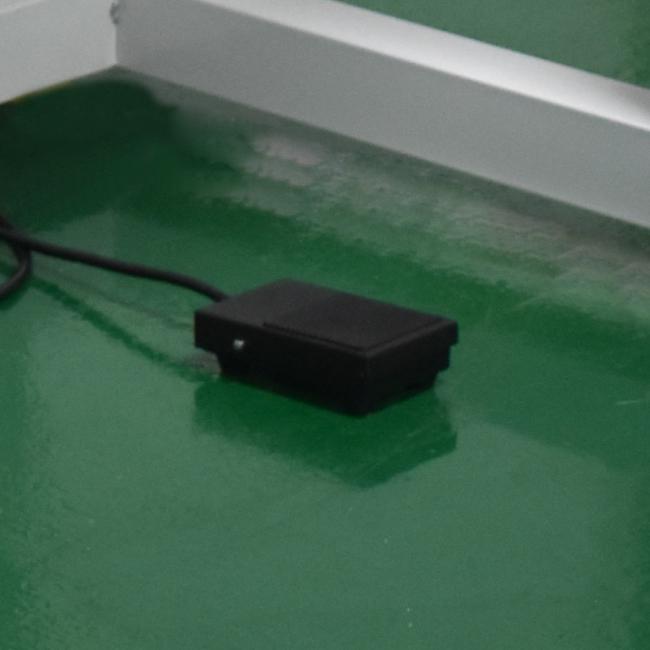

3. Foot on switch drives welding
Metal iron shell, not easy to damage, durable. Silver alloy electric shock, stable and durable. Humanized foot step non-slip design.
-
Welding case
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
