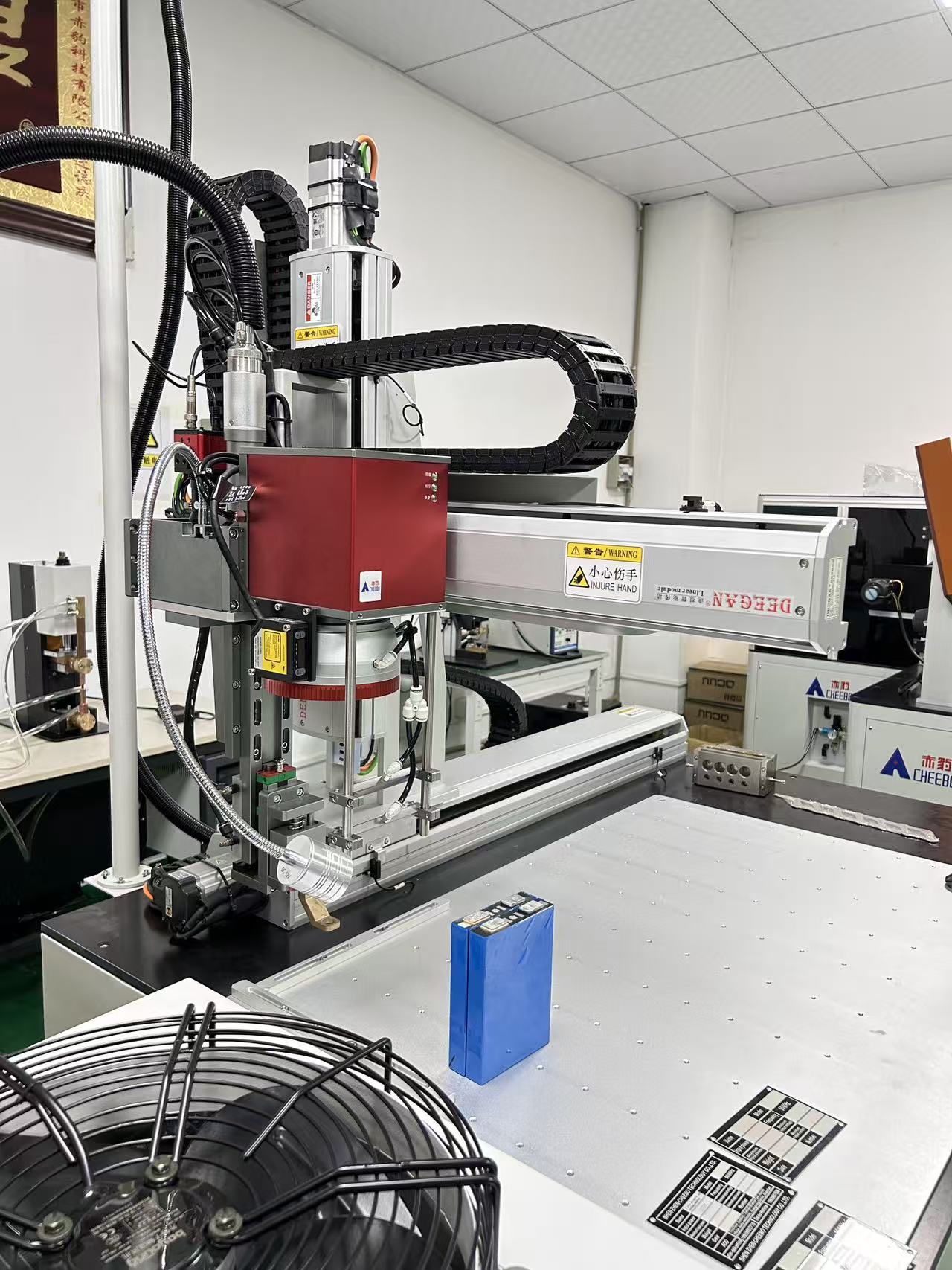

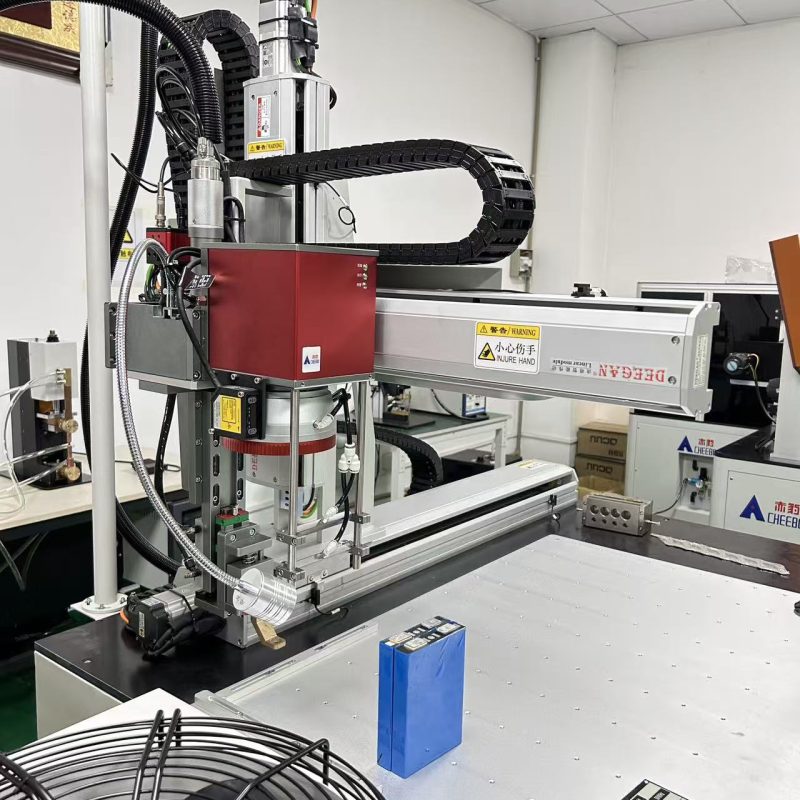

Galvanized mirror type gantry laser welding machine

Equipment Description:
A high-end production equipment integrating "high-speed galvanometer", "large-format gantry" and "laser precision".
●Ultra-high-speed welding: The galvanometer motor drives the reflecting mirror to perform millisecond-level angle deflection, enabling the laser beam to rapidly jump and scan on the workpiece surface.
●Suitable for large-sized workpieces: The gantry frame is responsible for moving the welding head within a large range for rough positioning, while the galvanometer performs high-speed and precise welding in the covered square area at a fixed position.
●Non-contact processing: Using non-contact welding, the energy is highly concentrated, the heat affected zone is small, the weld seam is beautiful and the deformation is extremely minimal.






										 Longevity gantry Dual Drive Sports Platform, gantry style Structure, Large Range Travel Working Welding Range.




										 Operated with precision guide rail transmission and equipped with high response servo motors, it has high precision and fast speed.




										  Laser welding has fine spots, high melting depth, small taper, high precision, and a smooth welding surface without bubbles.




										 PC industrial computer, welding CNC programming system, welding software editing is simple and easy to learn.




										 The laser power is adjustable, consumes less electricity, and requires no daily maintenance.




										 Automatic top pressure welding device reduces welding fixture requirements.




										 Support the addition of CCD visual positioning system and automatic focal length measurement system functions.







Technical Specs details presentation


Main technical specifications
Laser power
1500W/2000W/3000W/6000W
Wavelength
1080
Maximum machining size
800*600mm/1000*800
Operating mode
Continuous/Modulation
Welding speed
10-100mm/s
Adjust frequency
30-5KHZ
Fiber core
20um
Coolant system
External water cooling
Fiber optic cable diameter
50um
Power
380±20V，50/60Hz
Weight
About 500KG

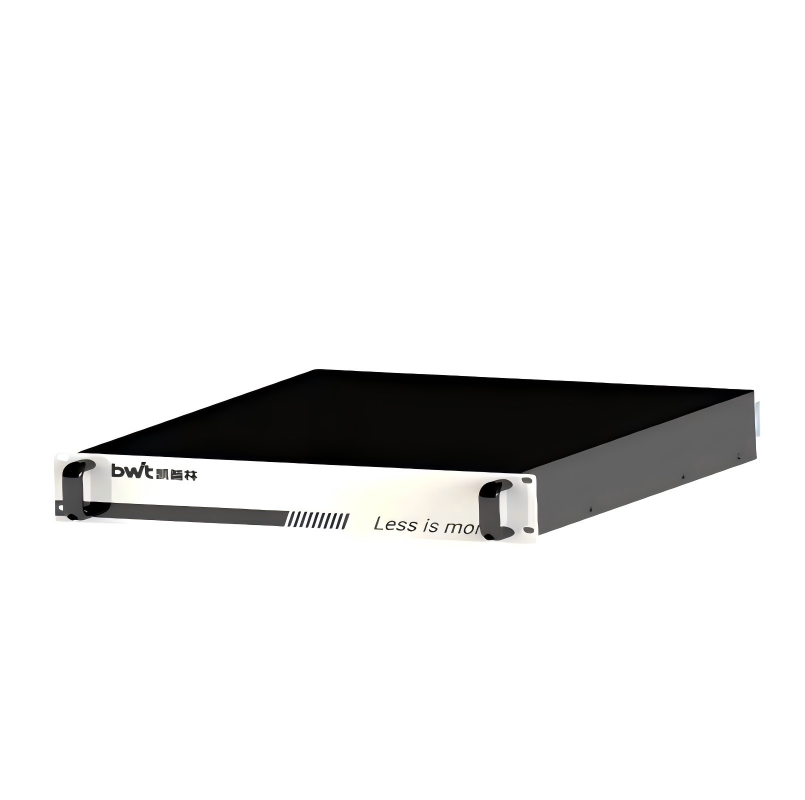

Fiber continuous laser
 The laser power is adjustable, consumes less electricity, and requires no daily maintenance.

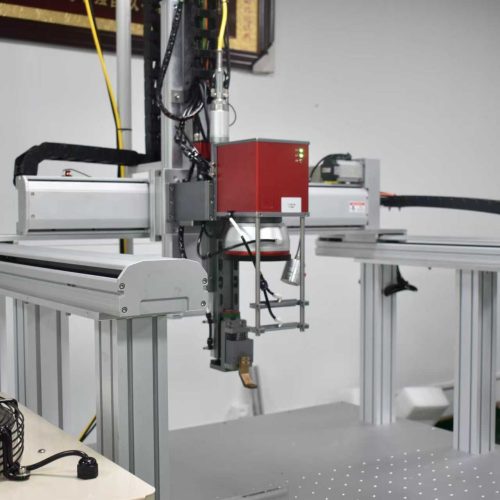

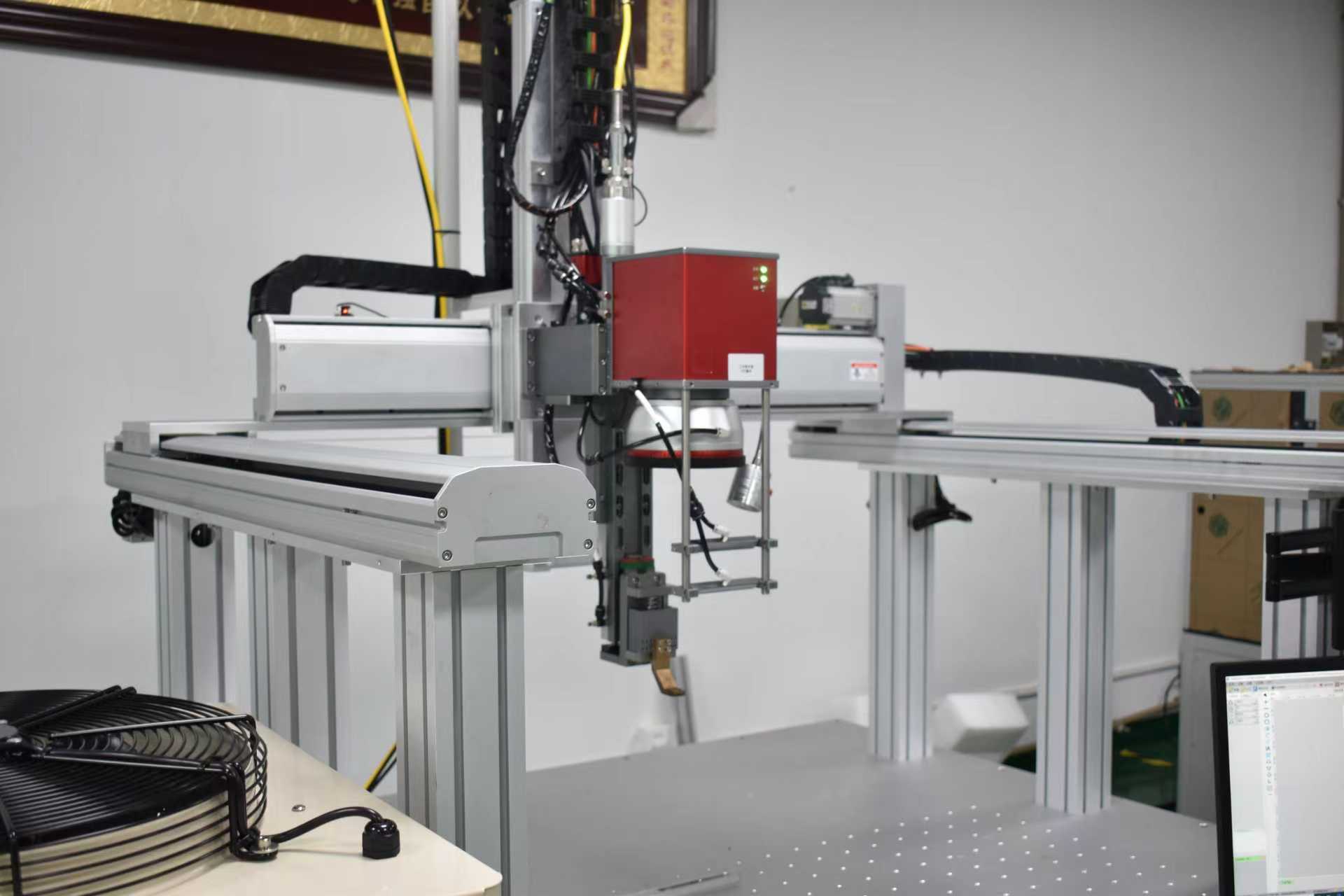

Longmen Movement Structure
 Longevity gantry Dual Drive Sports Platform, gantry style Structure, Large Range Travel Working Welding Range.

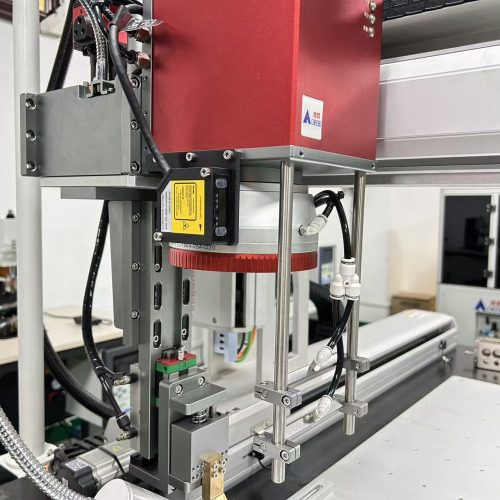

High-power mirror welding head
Automatic top pressure welding device reduces welding fixture requirements,laser welding has fine spots, high melting depth, small taper, high precision, and a smooth welding surface without bubbles.

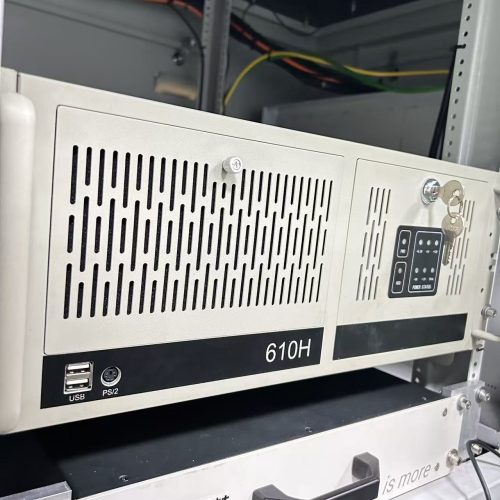

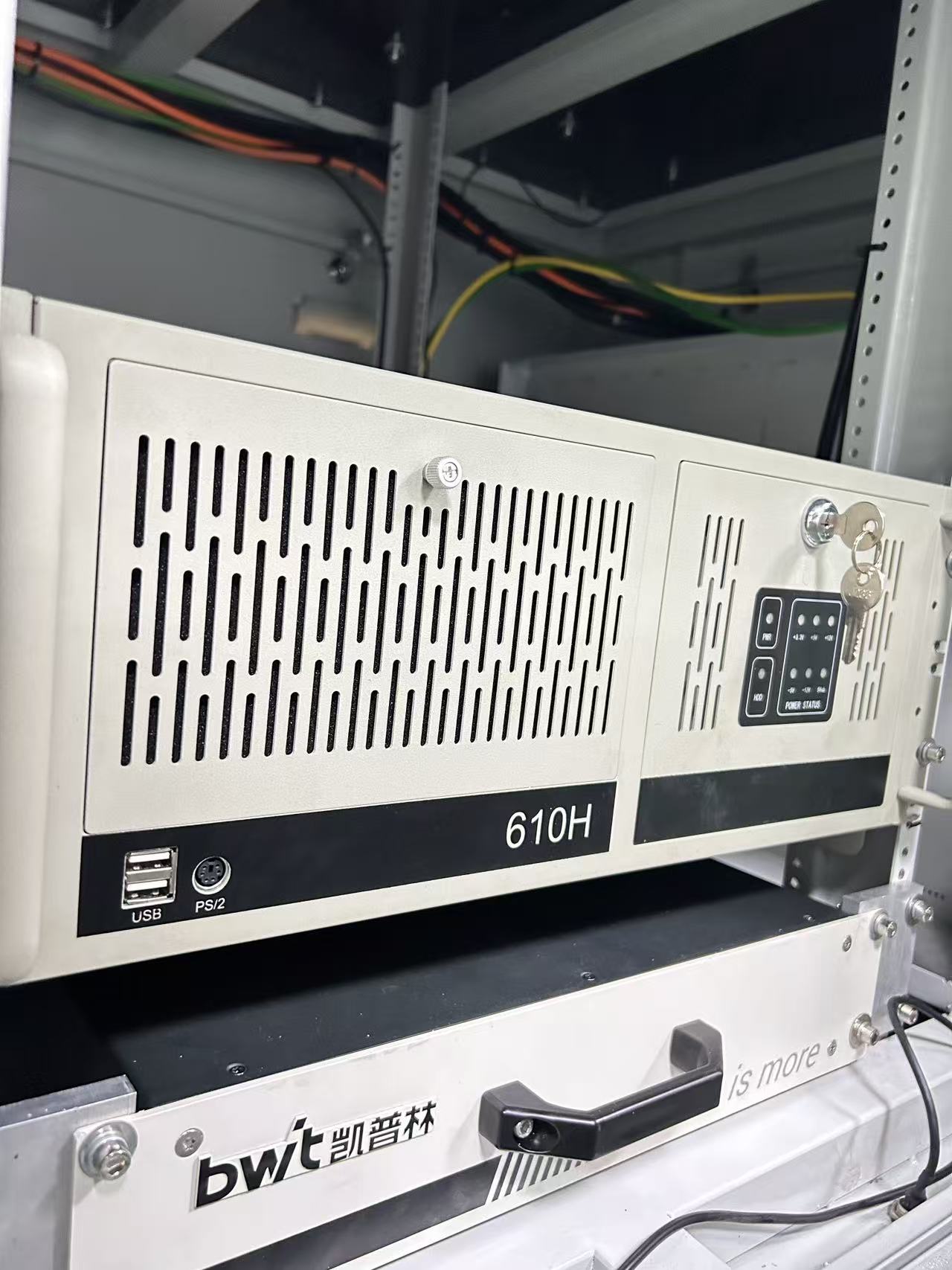

PC computer control system
PC industrial computer, welding CNC programming system, welding software editing is simple and easy to learn.
