Description
Detail Information
Place of Origin:
Guangdong, China
Compatible Cell Models:
18650/21700/32700/26650/32650, Etc Cylindrical Cell
Dimensions:
11600*1000*1730MM (L*W*H)
Line Color:
Ivory White (Customizable)
Total Power:
220V 50/60Hz 6KW
Use Air Pressure:
0.5-0.8Mpa
Production Efficiency:
3000PCS/H (Automatic Part)
CCD Detection Field:
400*300MM (Max)
CCD Lens Pixel:
2000W
Spot Welder Stroke:
500*360MM (Max)
Cell Sorting Channels:
6+1
Nickel Sheet Thickness:
0.02-0.3MM
Number Of Stickers:
4PCS (Depends On Cell Type)
User Interface:
Touch Screen
Manpower Required:
3-5 People
Highlight:
fully automatic battery pack assembly line
,
cylindrical battery pack assembly machine
,
high-speed battery pack production line 3000PCS/H
Product Description

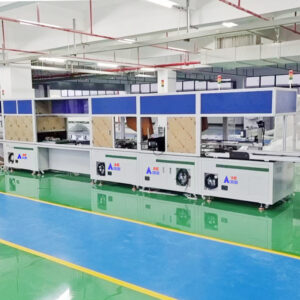

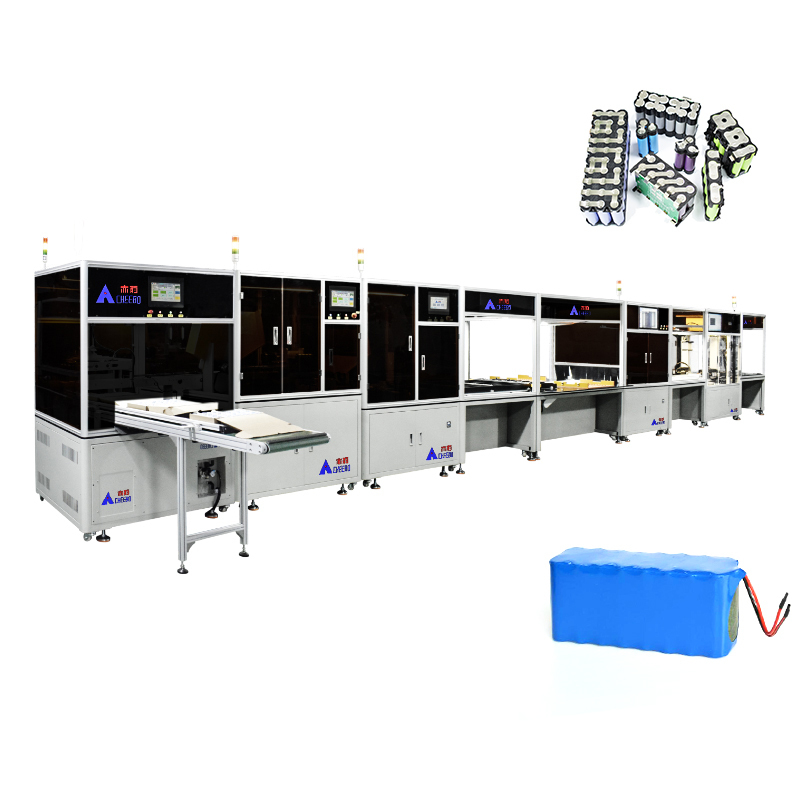

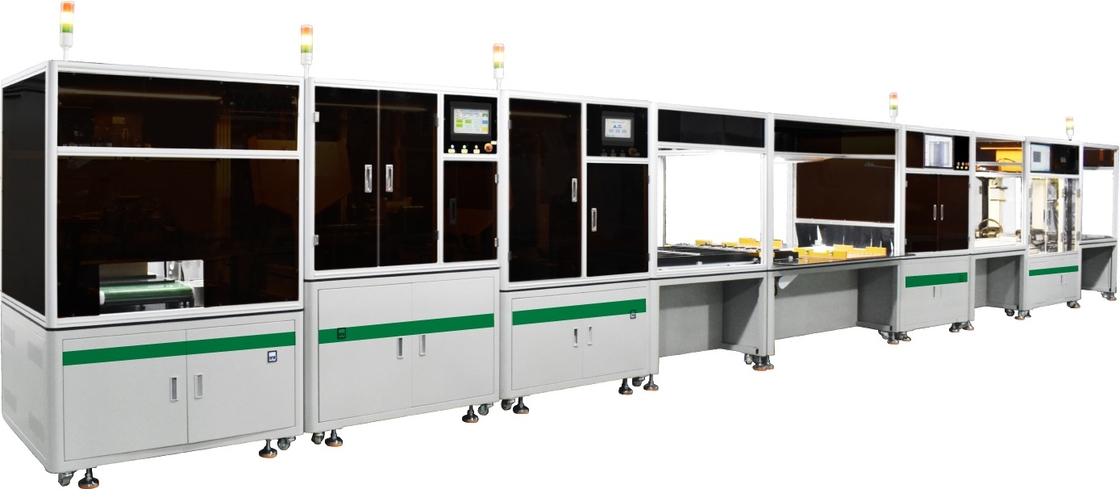

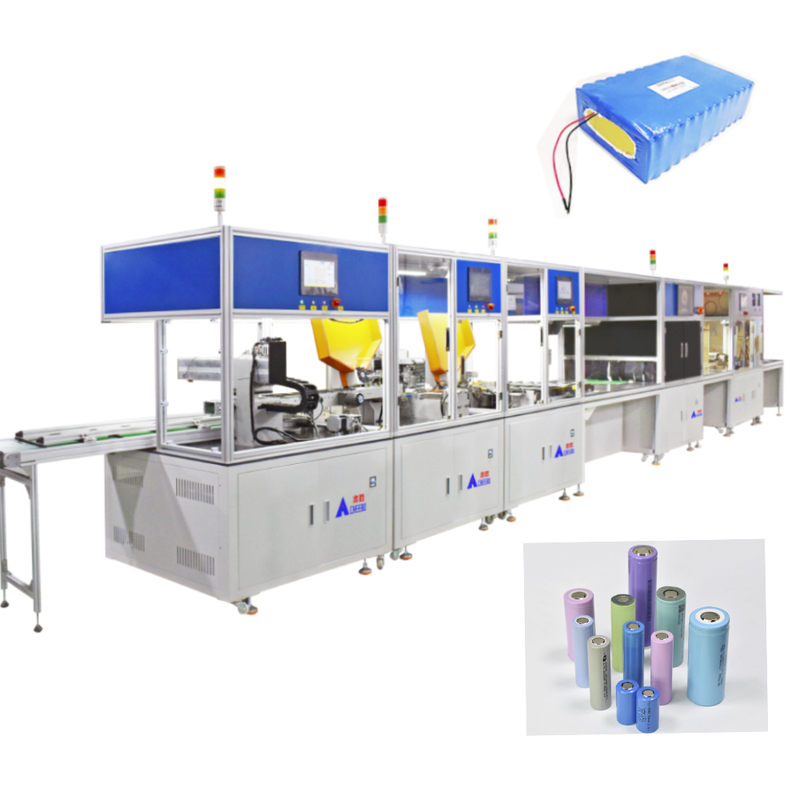

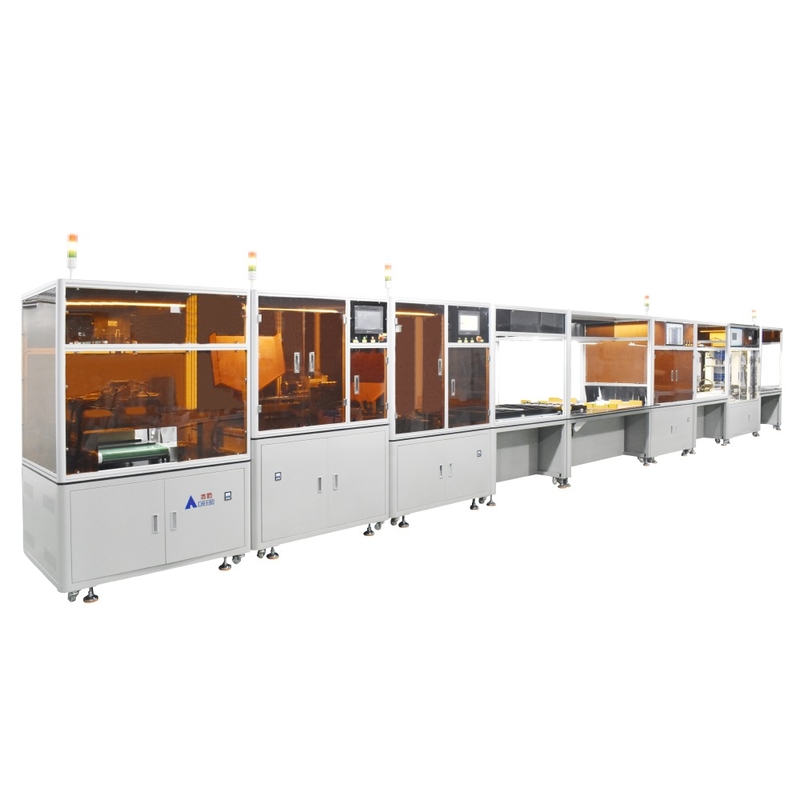

Efficient and Fully Automatic Customized Cylindrical Lithium Battery Pack Module Assembly Production Line
Product Attributes
| After-sales service | Provided |
| Key selling point | Simple and quick operation |
Product Introduction
Technical Specifications
- Compatible cell models: 18650/21700/32700/26650/32650, etc. (Cylindrical cells)
- Dimensions: 11600×1000×1730mm (L×W×H)
- Line color: Ivory white (Customizable)
- Total power: 220V 50/60Hz 6KW
- Use air pressure: 0.5-0.8Mpa
- Production efficiency: 3000PCS/H (Automatic part)
- CCD detection field: 400×300mm (Max)
- CCD lens pixel: 2000W
- Spot welder welding stroke: 500×360mm (Max)
- Cell sorting channels: 6+1
- Nickel sheet welding thickness: 0.02-0.3mm
- Number of stickers (Each time): 4PCS (Depends on cell type)
- User interface: Touch screen
- Manpower required: 3-5 people
Applications
- Power tool battery packs
- Energy storage battery packs
- Electric vehicle battery packs (including but not limited to)
Frequently Asked Questions
Q: I don’t know which one is right for me?
A: Please tell us the following information:
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack
3) How many battery packs should be produced per day
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack
3) How many battery packs should be produced per day
Q: How do I install and run the machine?
A: Our technicians install the machine before shipment. For installation of some widgets, we provide detailed training videos and user manuals. 95% of customers can teach themselves.
Q: What can we offer you?
A: Equipment and resources for lithium battery pack assembly.
Q: What’s your minimum order quantity?
A: We don’t have a minimum order quantity. Whether it’s an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests are performed on each unit. After all tests are passed, our QC tests the welding performance.
Q: When the machine can’t work well, what should I do?
A: 1. Our engineer is available 24/7 to diagnose problems and provide solutions.
2. All machines have a one-year warranty. For problems under normal use, we will send replacement parts (customer pays shipping).
3. Operation CD and manual are provided with the machine for easy operation.
2. All machines have a one-year warranty. For problems under normal use, we will send replacement parts (customer pays shipping).
3. Operation CD and manual are provided with the machine for easy operation.
Q: If we don’t know how to use the machine, can you teach us?
A: Yes, we provide free training if you visit China. During installation, our professional engineer will train your staff in your country.
