Description
Detail Information
Place of Origin:
Guangdong, China
Compatible Cell Models:
18650/21700/32700/26650/32650
Dimensions:
11600*1000*1730MM (L*W*H)
Total Power:
220V 50/60Hz 6KW
Use Air Pressure:
0.5-0.8Mpa
Production Efficiency:
3000PCS/H (Automatic Part)
CCD Detection Field:
400*300MM (Max)
CCD Lens Pixel:
2000W
Spot Welder Stroke:
500*360MM (Max)
Cell Sorting Channels:
6+1
Nickel Sheet Thickness:
0.02-0.3MM
Number Of Stickers:
4PCS (Depends On Cell Type)
User Interface:
Touch Screen
Manpower Required:
3-5 People
Line Color:
Ivory White (Customizable)
Welding Thickness:
0.02-0.3MM
Highlight:
cylindrical lithium battery assembly line
,
battery pack assembly line 3000PCS/H
,
lithium battery pack production line
Product Description

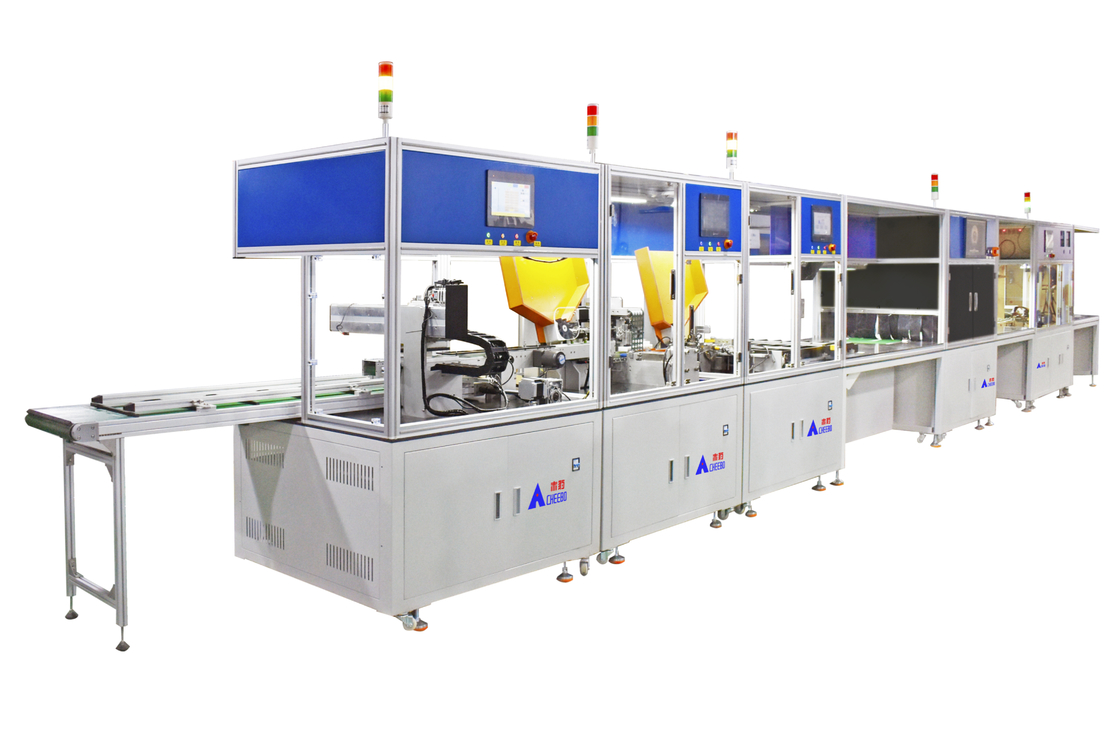

Lithium Battery Pack Assembly Equipment Cylindrical Lithium Battery Assembly Line
Key Features
- Simple and quick operation
- After-sales service provided
Product Specifications
| Compatible cell models | 18650/21700/32700/26650/32650, etc Cylindrical cell |
| Dimensions | 11600*1000*1730MM (L*W*H) |
| Line color | Ivory white (Customizable) |
| Total power | 220V 50/60Hz 6KW |
| Use air pressure | 0.5-0.8Mpa |
| Production efficiency | 3000PCS/H (Automatic part) |
| CCD detection field | 400*300MM (Max) |
| CCD lens pixel | 2000W |
| Spot welder welding stroke | 500*360MM (Max) |
| Cell sorting channels | 6+1 |
| Nickel sheet welding thickness | 0.02-0.3MM |
| Number of stickers (Each time) | 4PCS (Depends on cell type) |
| User interface | Touch screen |
| Manpower required | 3-5 people |
Applications
Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)
Frequently Asked Questions
Q: I don’t know which one is right for me?
A: Please tell us the following information:
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack?
3) How many battery packs should be produced per day
1) What type of cell do you want to assemble? What is its model number?
2) Capacity and volume of battery pack?
3) How many battery packs should be produced per day
Q: How do I install and run the machine?

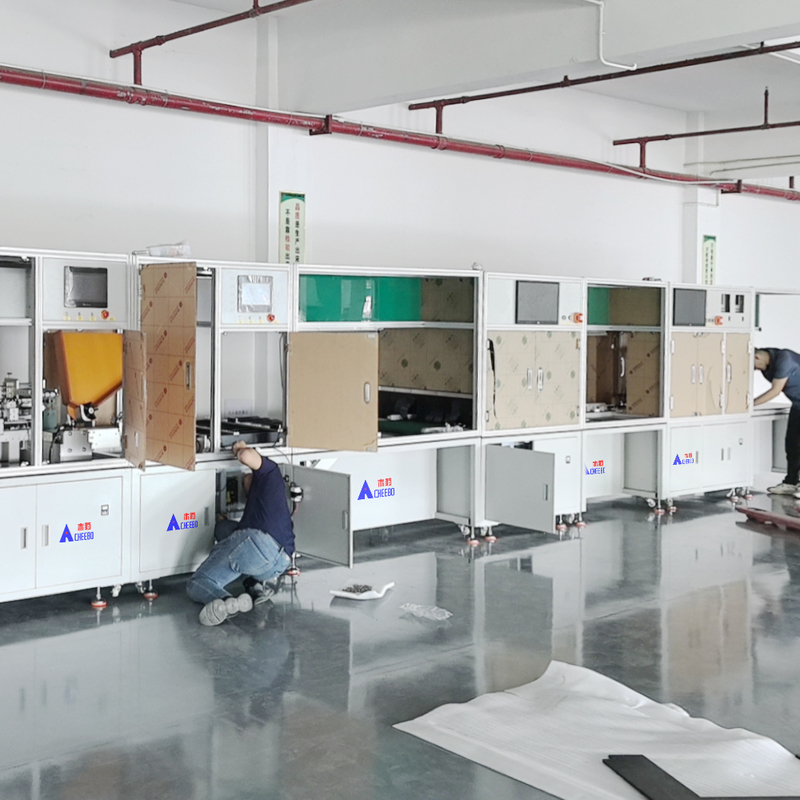

A: Our technicians install the machine before shipment. For installation of some widgets, we provide detailed training videos and user manuals. 95% of customers can teach themselves.
Q: What can we offer you?
A: Equipment and resources for lithium battery pack assembly.
Q: What’s your minimum order quantity?
A: We don’t have a minimum order quantity. Whether it’s 1 or 100 units, we fully support you.
Q: How does your factory handle quality control?
A: Quality comes first. Each unit undergoes more than 20 tests. After passing all tests, our QC team verifies welding performance.
Q: When the machine can’t work well, what should I do?
A: 1. Our engineers are available 24/7 to diagnose problems and provide solutions.
2. All machines come with a one-year warranty. For parts failing under normal use, we’ll send replacements (customer covers shipping).
3. Operation CD and manual are included for easy operation.
2. All machines come with a one-year warranty. For parts failing under normal use, we’ll send replacements (customer covers shipping).
3. Operation CD and manual are included for easy operation.
Q: If we don’t know how to use the machine, can you teach us?
A: Yes, we provide free training in China until you’re comfortable with the machine. For international customers, we send a professional engineer to train your staff during installation.
