18650 Battery Automatic Labeling Machine
,
18650 Battery Paper Pasting Machine
,
Cylindrical Automatic Labeling Machine
Cylindrical Automatic Battery Stickers Machine 18650 Lithium Ion Battery Stickers Machine
● This sticker machine is controlled by PLC stepping motor and cylinder to complete the function of 18650 / 21700 / 21650 finished battery cell positive electrode paste highland barley insulation paper.
● The number of cylindrical finished cells of about 4,000 can be completed per hour.
● Use a 7-inch HD touch screen to monitor the running state of the machine in real time.
● Cylinder driven knife for stamping, stamping 4 cells at a time, slicing is made of high speed steel material, high wear resistance strength, good finished product quality, high production efficiency.
● Sticker and stamping are stable, with high consistency of patch position and low defect rate.
● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.
● Has the function of clear tail material, can clear the tail material with one key.
● Compatible materials: highland barley paper, Kuaiba paper, glutinous rice paper, RET protection stickers, etc.
● Mechanical structure design is simple and generous, and the system performance is stable.
- Wear highland barley paper steps
- Adjust the press cutter
- Adjustable center position
- Loading step demonstration
- On-line debugging
- Replace stamping tool debugging
| Production efficiency | 60-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | 18650/21700/21650 | Pass rate | ≥95% |
| Sticker efficiency | ≥60PPM | Transmission mode | Mechanical hand |
| Compatible material | Highland barley paper, fast bus paper, glutinous rice paper, RET protective stickers, etc | Maximum impact speed | 99.99% |
| Work method | Stepper motor + pneumatic | Machine Dimensions | 1275*860*1524MM |
| structural material | aluminium alloy | Machine Weight | 150KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical cell sticker |
1.Large hopper
Large feeding hopper, slope type hopper, suitable for the whole box feeding, feeding convenient. One-time 300PCS18650 battery cell.
2.Hd touch screen
7 inch HD touch screen, real-time display of machine running status. With fault alarm device, quickly determine the fault point, after adjustment can continue production.

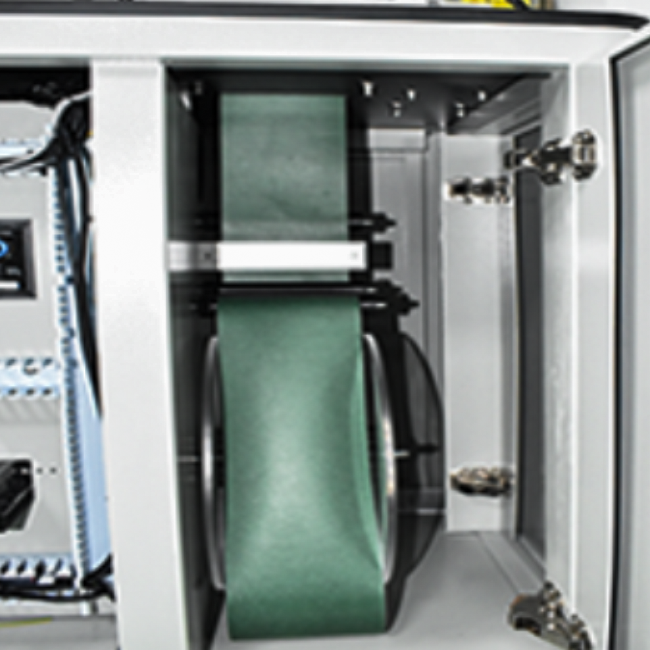

3.Loading mechanism
Ensure that the adhesive material is not affected by the environment. The loading operation is simple.
- Do not touch any operating components during the operation of the equipment
- Automatic highland barley paper pasting machine applies positive pole insulation protection paper to the battery cell, and places the battery according to the requirements
- Timely cleaning of punching and pasting waste materials
- Regular maintenance of stamping tools
- Regularly discharge the water stored in the oil water filter
- Avoid stamping foreign objects with stamping tools, which may cause tool jamming
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery type do you want to be compatible with?
3) Paste materials.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q:What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q :How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
