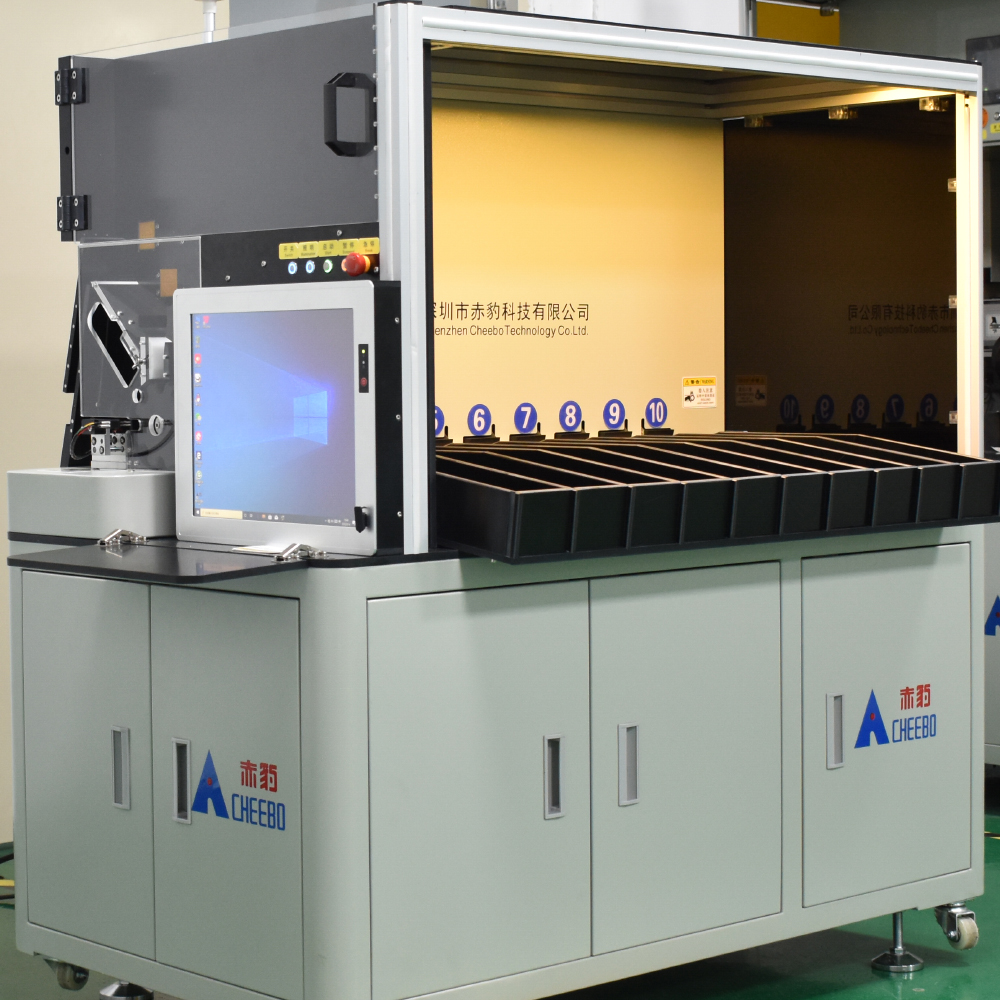

Comprehensive 10-gears sorting machine

https://youtube.com/shorts/07TFL_z1z9g
Equipment Description:
A modern core sorting equipment integrating "precise classification, efficient automation and intelligent control".
●High precision: High-precision sensors (such as optical, gravitational or dimensional sensors) are adopted to ensure extremely low sorting errors.

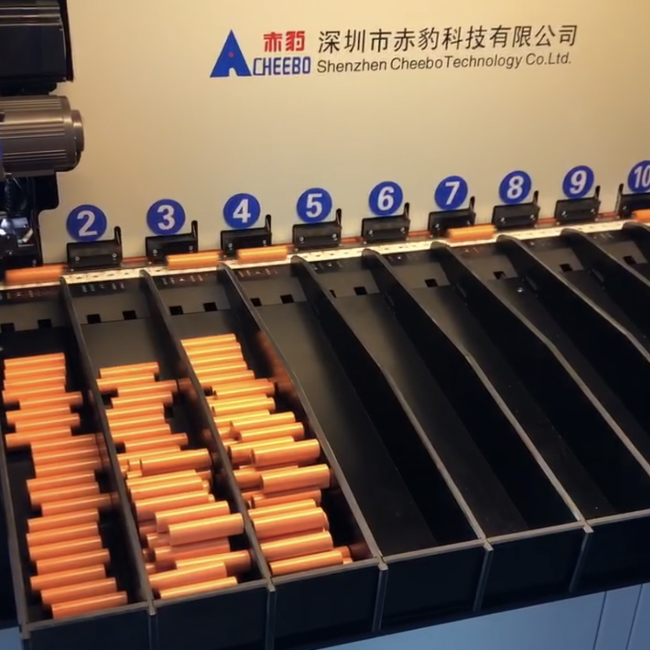

●High-speed sorting efficiency: With a multi-level design featuring ten independent sorting levels, materials can be divided into multiple fine grades at one time.
●Intelligent control: Equipped with a touch screen or computer control system, parameter adjustment is intuitive and convenient, and real-time display of operation status, sorting quantity, error rate and other data is available.






										An automatic sorting equipment suitable for voltage and internal resistance testing of cylindrical battery cells of various specifications.




										 Complete the sorting of over 4000 cylindrical finished battery cells per hour.




										Easy to operate interface with one click generation function. Simply start the voltage resistance and enter the corresponding interval to complete the parameter setting.




										Adopting PLC+upper computer control mode, the upper computer records and displays sorting data in real time.




										With manual parameter modification function, it can be fine tuned for each gear or adjusted with one click modification function.




										Adopting Mitsubishi PLC+imported Panasonic servo control unit+4 probe design.




										Adopting an integrated industrial grade computer, human-machine interaction is simple and convenient.




										Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.







Technical Specs details presentation


Main technical specifications
Equipment capacity
60-70PPM
Compatible with batteries
18650-32700
Sort gears
10+1

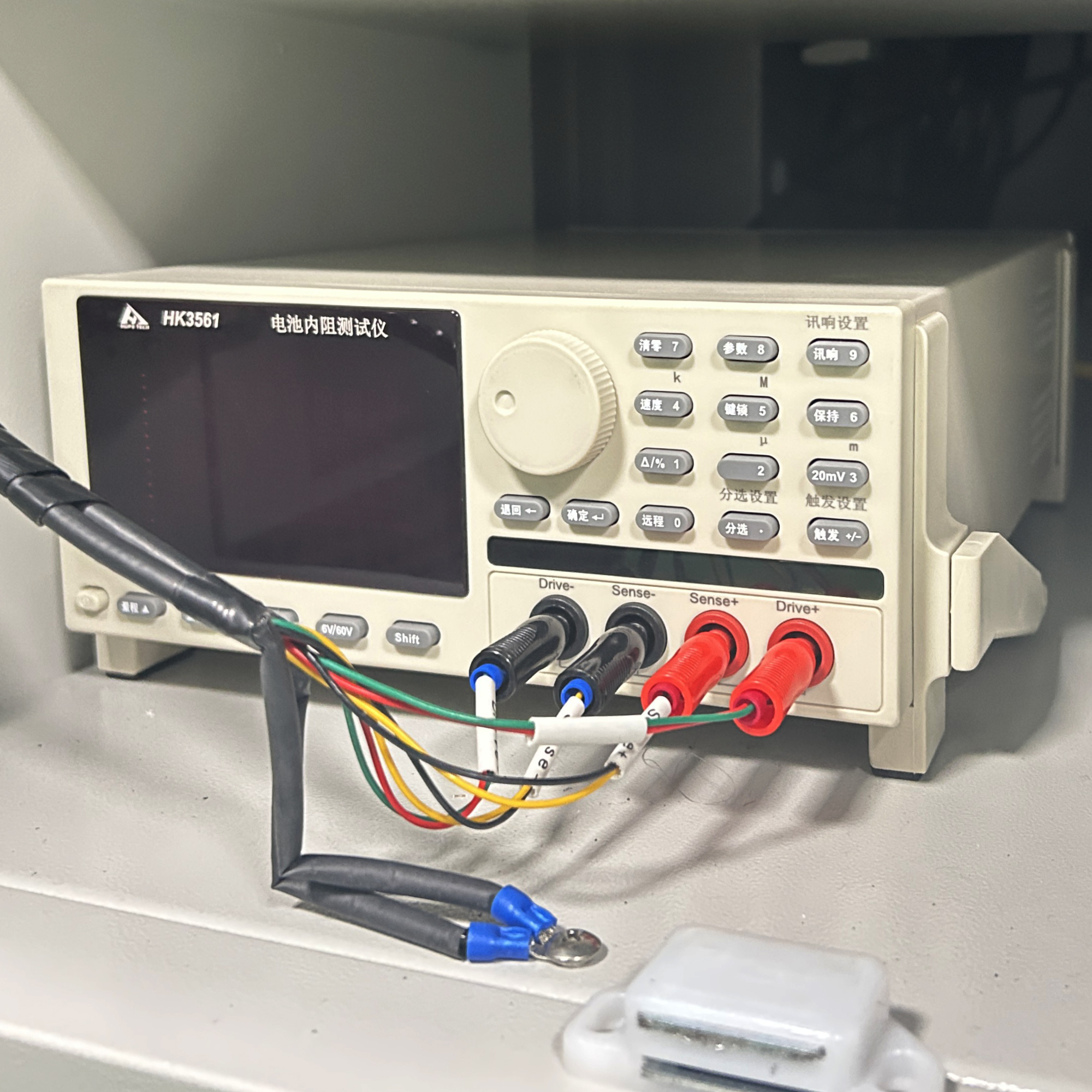

Tester
HIOKI/HEPU
Sort parameters
Open circuit voltage, AC internal resistance
Driving method
pneumatic
Size weight
1390*820*1360MM 190KG
Power
220V 50/60HZ


Real-time Data Monitoring and Export

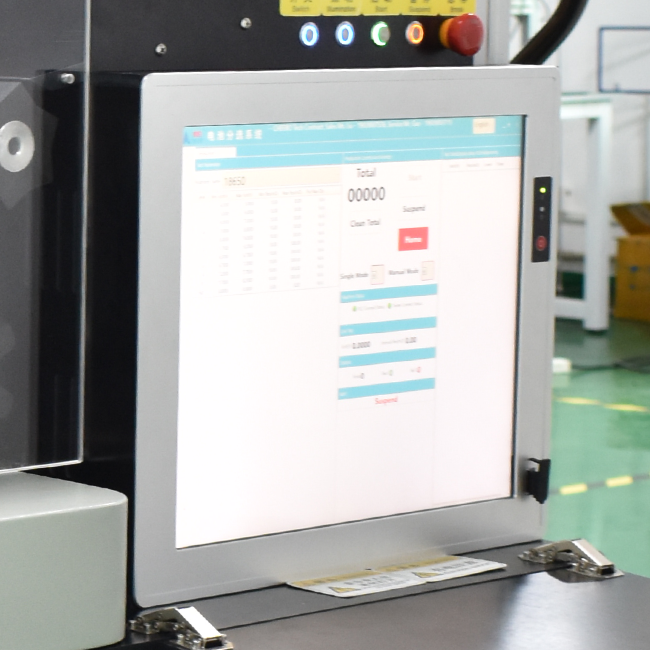

Industrial control computers display sorting data in real time, supporting querying, saving, and exporting for easy analysis and traceability.


Smart K-Value Comparison Function
Supports importing data for K-value comparison and sorting (optional configuration), suitable for customers requiring high consistency.


MES System Integration Ready
Open RS-485 communication interface, optional scanner available, supports data upload to MES system


Closed-Loop Servo Drive System
Features closed-loop stepper motors for smoother operation, more precise positioning, and no drift over extended use.
