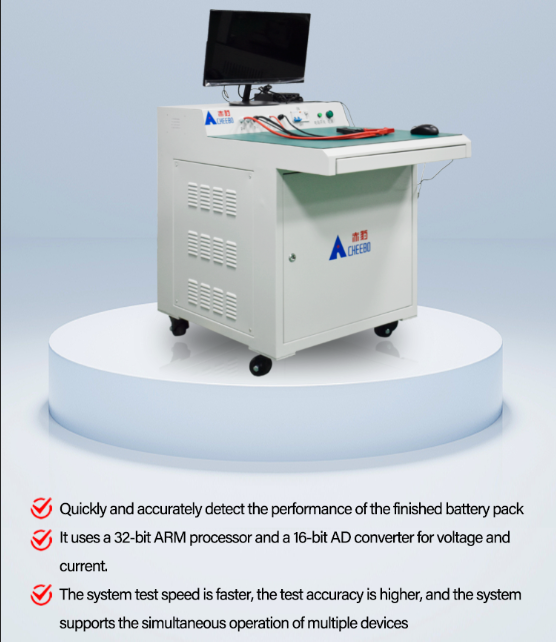

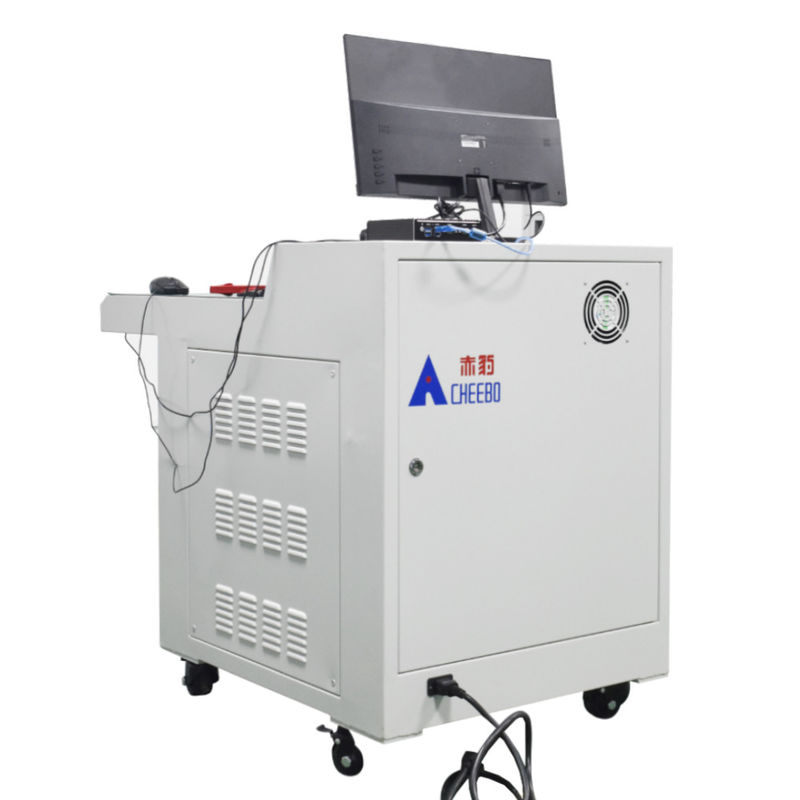

CE Battery Pack Testing Machine Lithium Battery Function Comprehensive Tester




Detail Information







Place of Origin:

China




Certification:

CE certification





Product Name:

Battery Comprehensive Tester





Color:

Grey





Type:

Digital





Communication Mode Of Upper Computer:

Serial Port





No-load Voltage Measurement Range:

10-100V





Equipment Size:

1050mm*450mm*980mm


















Supply Ability:

10 Set/Sets per   Week












Highlight:

CE Battery Pack Testing Machine
,
Lithium Battery Function Comprehensive Tester






Product Description

Battery Pack Testing Machine Lithium Battery Function test Comprehensive Tester





Application scope of the product



Suitable for testing finished battery packs, the comprehensive testing equipment for finished batteries is a device that quickly and accurately tests



the performance of finished batteries. The main testing items include: open circuit voltage, AC internal resistance, discharge test, discharge



overcurrent test, short circuit protection test, charging test, and charging protection test.



Equipment introduction



● The testing instrument has two main functions, namely battery production testing mode and calibration mode. Therefore, this device can be used as an electronic load and a comprehensive testing instrument.



● The specific testing items are: testing the battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharge current, continuous discharge voltage, charging overcurrent protection current, discharge overcurrent protection current, short circuit protection time, overcurrent delay time, and voltage after testing. The device uses an infrared scanning gun barcode input (SN) to start the test or automatically starts the test when voltage is detected.



● Scope of application: For lithium-ion batteries equipped with (CH+P+CH - P -), all series of power batteries.



Technical specification














Technical parameters of tester




Voltage range :0-100V

Resolution :1mV

Accuracy :0.1%RD+0.1FS




Internal resistance range :0-2000MQ

Resolution :0.001MQ

Accuracy :0.1%RD+0.1FS




Charging current :0-300A

Resolution :0.001A

Accuracy :0.1%RD+0.1FS




Discharge current :0-500A

Resolution :0.001A

Accuracy :0.1%RD+0.1FS




Overcurrent delay time :0-30S

Resolution :2mS

Accuracy :0.1%RD+0.1FS




Short circuit time :0-2000uS

Resolution :1uS

Accuracy :0.1%RD+0.1FS




NTC range :0-100K

R1 range :0-100K

Equipment operating voltage :AC200V-240V




Maximum working power :5000W(maximum current charge)

Maximum working power :5000W(maximum current charge)






Equipment operation process description



The battery pack is welded to complete the protection plate -- Select the correct test template for the comprehensive tester -- Connect the



P+/C+/P-/ C-test special alligator clip -- Connect the NTC special alligator clip -- click to start the test
