Battery Polarity Detection Equipment

Equipment Description:

A non-contact detection, ultra-fast response and automatic elimination device for recording quality data - the core equipment.

●High-precision error prevention: The system is equipped with multiple verification mechanisms, and automatically eliminates or alarms and stops any polarity errors or unidentifiable batteries.

● Non-contact detection: Non-contact optical detection, without physical wear and tear, suitable for high-speed production cycles, seamlessly integrated into automated production lines.

●Intelligent management: Equipped with a human-machine interface, it can display real-time information such as the number of tests, pass rate, error alerts, etc., and parameter adjustments are convenient.

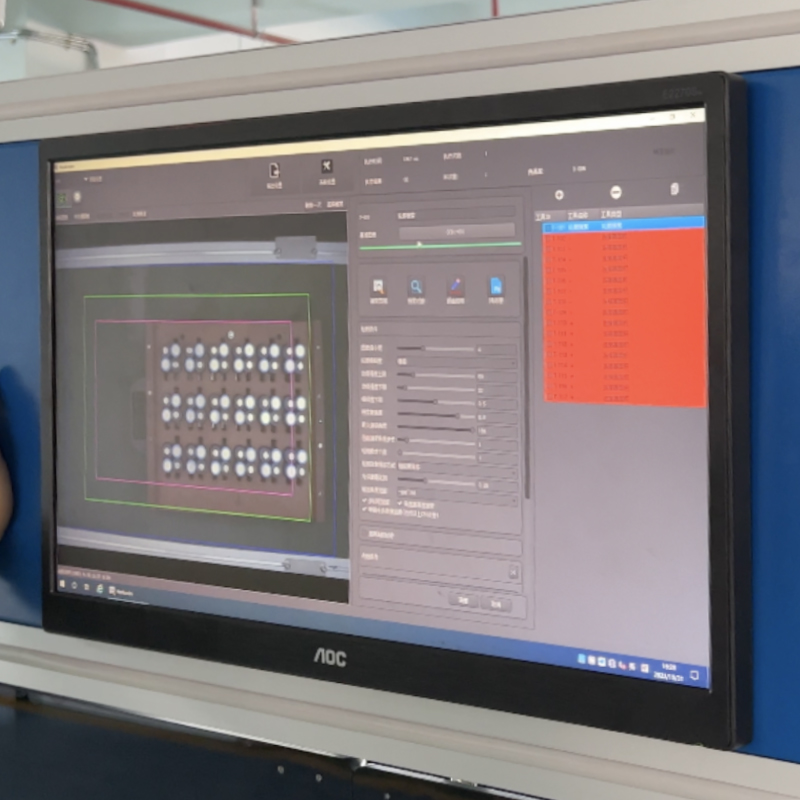

The CCD visual inspection equipment adopts machine vision technology and is a multi-purpose visual inspection system based on CCD industrial cameras for inspection.


Compatible with multiple specifications of battery packs, supports multi template comparison, and can store 100 sets of test data.


Belt transmission, fast detection without lagging, saves labor costs, and can perform highly repetitive work.1000W high-definition camera with zero detection error, stable operation for a long time, good reliability, and high detection accuracy.


It has manual debugging function, which can fine tune and save monitoring area parameters for each detection, as well as adjust the overall offset function.


Equipped with automatic fixture positioning detection, capable of determining OK/NG and counting quantities.


Designed with adjustable lighting height, it can be used in various lighting environments.


Technical Specs details presentation



Main technical specifications


Detection range
250*400MM（Customizable）


Detection efficiency
6-8PPM


Detection algorithm
Contrast


Lens pixels
2000W pixel high-definition lens


Transmission mode
Belt transmission


Display mode
graphic display


Size weight
1200*1000*1800mm 230KG


Power
220V 50/60HZ




CCD Visual Inspection
Utilizing a 20-megapixel Hikvision industrial camera, it delivers high detection accuracy and supports multi-type defect recognition including polarity, missing parts, and misalignment.

Non-contact detection
No need to touch the battery cells, avoiding damage to the products. Safe and reliable, suitable for high-quality production lines.

Intelligent alarm
Automatic audible and visual alarm + graphical positioning during NG situation. After manual confirmation, it can be released, improving the efficiency of error correction.

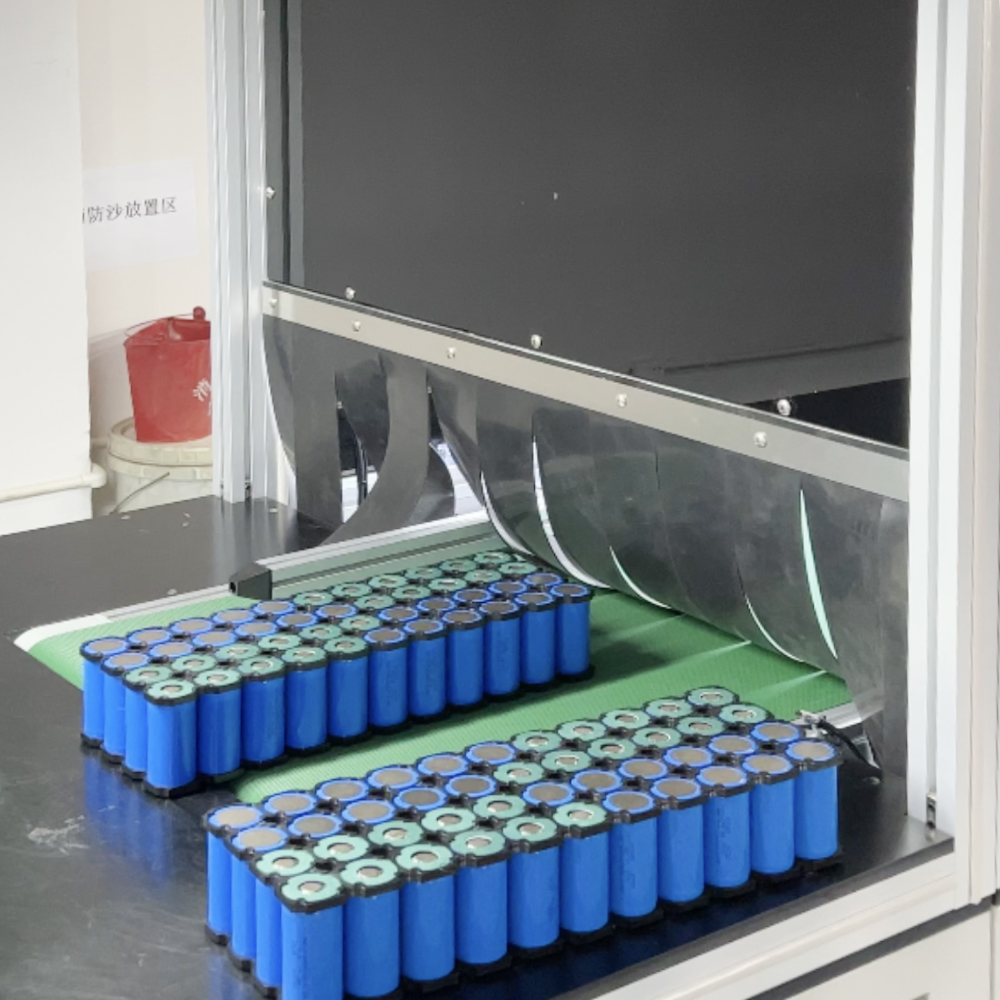

Belt line design
Left-in-right-out assembly line layout, supporting fixture reflow, seamless connection between front and rear production lines.
