Description
Automatic Lithium Battery Spot Welder
,
Lithium Battery Spot Welder 0.3MM
,
Automatic Cell Spot Welder
Automatic Lithium Battery Spot Welder For Battery Automatic Fixture Turning
Equipment introduction
● This lithium battery spot welding machine is a multi axis control machine developed by modern automation experts, combined with precision transmission and motor control mechanism for automatic walking mechanism, effectively controlling real-time processing of automated production equipment.
● The equipment is suitable for fully automatic single sided spot welding of various cylindrical cell combinations such as 18650, 21700, 26650, 32700, etc.
● The CBMO4-1710 lithium battery welding single side machine adopts a welding fixture design that can automatically flip. After the A-side welding is completed, it can automatically flip to the B-side welding without the need to manually flip the fixture.
● CHEEBO battery cell welding head automatic spot welding machine can rotate 135 °, suitable for welding irregularly shaped nickel sheets, effectively avoiding needle sticking during the welding process.
● Install grille protection devices on both sides to ensure the safe operation of the equipment.
● Explosion welding and false welding equipment will automatically alarm, and automatic area repair welding and single point repair welding will be manually adjusted.
● Adopting Taiwan silver wire guide rail module, it has high precision, low noise, smooth sliding, and durability.
● Adopting Panasonic servo, the welding speed is fast and the accuracy is high.
● High definition LCD touch screen, human-computer interaction interface, simple and convenient operation.
● Independently develop various automated intelligent systems to facilitate equipment operation and help improve production efficiency.
● Equipped with energy switching function, production counting function, welding needle compensation function, manual debugging function, etc. Can assist in intelligent operation of devices.
● Manual programming, CAD drawing, importing spot welding paths, and quickly implementing programming. Easy to learn, fully competent production line workers.
● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.
● Imported acrylic protective plate, beautiful and generous, strong sense of science and technology, intuitive operation, improve the production Factor of safety.
Technical specification
| Production efficiency | 3800PCS/H | Welding head rotation Angle | 1/CFM |
| Welding thickness | 0.02-0.3MM | Relocation accuracy | 0.1mm |
| Simplex welding stroke | 170MM*100MM | Platform load | 35KG |
| XY shaft welding accuracy | 0.1MM | Welding pressure | 5KG/F |
| Welding head rotation Angle | 0°-135° | Welding pressure | 600*900*1420MM |
| XY shaft welding stroke | 1700MM*100MM | Machine Weight | 330KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery welding |
Function Introduction

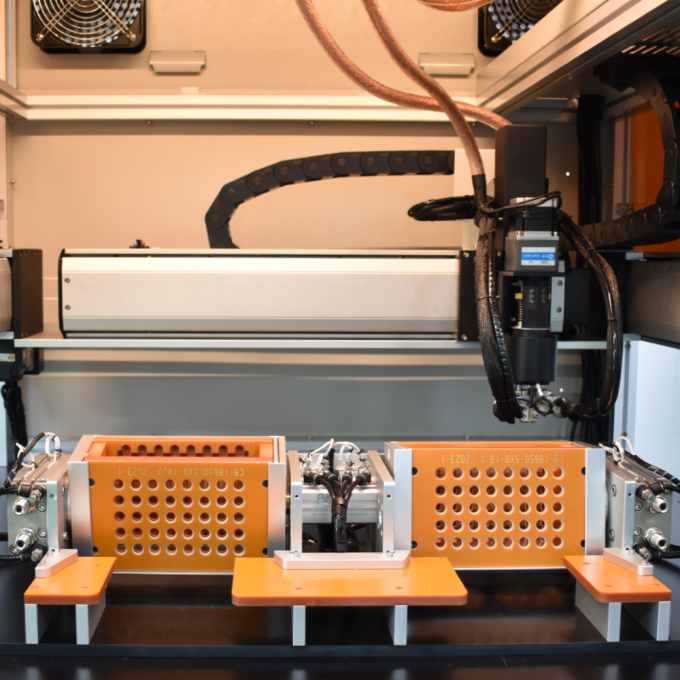

1. Double station rotating platform
The fixture automatic rotating mechanism is adopted. After the welding of side A, it automatically rotates to welding of side B without manual turnover. Provide productivity.
2. Precision servo welding head
The welding head can be rotated 135°. Suitable for all kinds of shaped nickel sheet, effectively prevent sticking needle and other bad welding phenomenon, welding head pressure can be adjusted.

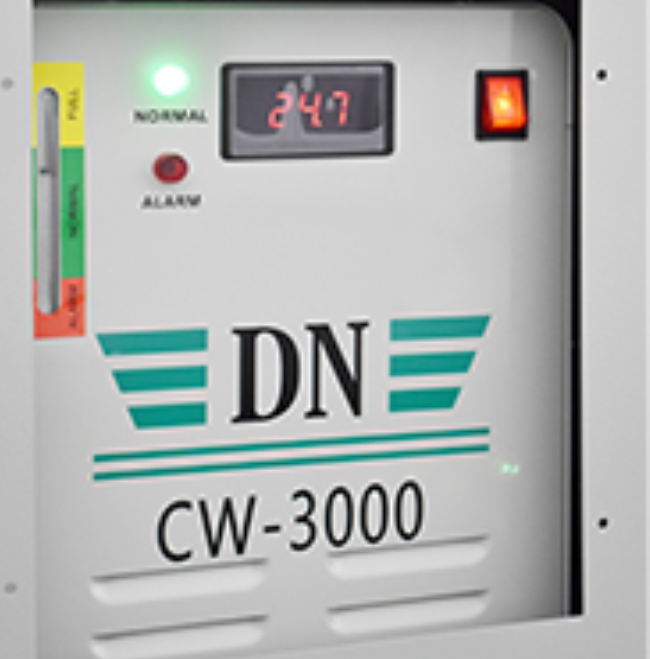

3. Welding head constant temperature cooling system
Water cooling cycle heat dissipation, instantaneous high current welding, always maintain a constant temperature, effectively reduce the loss of welding needle, reduce the impact on welding quality, improve the welding effect
Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution
FAQ
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
