Description
Detail Information
Place of Origin:
Guangdong, China
Compatible Cell Models:
18650/21700/32700/26650/32650, Etc Cylindrical Cell
Dimensions:
11600*1000*1730MM (L*W*H)
Total Power:
220V 50/60Hz 6KW
Use Air Pressure:
0.5-0.8Mpa
Production Efficiency:
3000PCS/H(Automatic Part)
CCD Detection Field:
400*300MM（Max）
CCD Lens Pixel:
2000W
Spot Welder Stroke:
500*360MM（Max）
Cell Sorting Channels:
6+1
Nickel Sheet Thickness:
0.02-0.3MM
Number Of Stickers:
4PCS（Depends On Cell Type）
User Interface:
Touch Screen
Manpower Required:
3-5 People
Line Color:
Ivory White（Customizable）
Welding Thickness:
0.02-0.3MM
Highlight:
18650 battery pack assembly line
,
21700 cylindrical battery production line
,
automatic battery pack assembly machine
Product Description

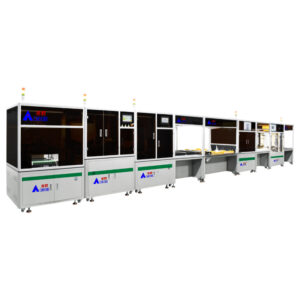

Lithium-ion Battery Pack Equipment Automatic Cylinder Battery Pack Assembly Line
Key Features
- High-efficiency automatic assembly line for cylindrical battery packs
- Compatible with multiple cell models (18650/21700/32700/26650/32650)
- High production capacity of 3000PCS/H (automatic part)
- Precision CCD detection system with 2000W pixel lens
- User-friendly touch screen interface
- After-sales service provided
Technical Specifications
| Attribute | Value |
|---|---|
| Dimensions | 11600*1000*1730MM (L*W*H) |
| Line color | Ivory white (Customizable) |
| Total power | 220V 50/60Hz 6KW |
| Use air pressure | 0.5-0.8Mpa |
| CCD detection field | 400*300MM (Max) |
| Spot welder welding stroke | 500*360MM (Max) |
| Nickel sheet welding thickness | 0.02-0.3MM |
| Manpower required | 3-5 people |
Product Images
Applications
This assembly line is suitable for manufacturing various types of battery packs including:
- Power tool battery packs
- Energy storage battery packs
- Electric vehicle battery packs
- Other cylindrical battery pack applications
Frequently Asked Questions
Q: I don’t know which one is right for me?
A: Please provide the following information:
1) Cell type and model number you want to assemble
2) Capacity and volume of battery pack
3) Daily production requirements
1) Cell type and model number you want to assemble
2) Capacity and volume of battery pack
3) Daily production requirements
Q: How do I install and run the machine?
A: Our technicians pre-install the machine before shipment. We provide detailed training videos and user manuals. 95% of customers can learn operation independently.
Q: What’s your minimum order quantity?
A: No minimum order quantity – we support orders from 1 to 100+ units.
Q: How does your factory handle quality control?
A: Each unit undergoes more than 20 quality tests, including welding performance verification by our QC team.
Q: What if the machine has operational issues?
A: We provide:
1) 24/7 online engineer support
2) One-year warranty (customer covers shipping for replacement parts)
3) Comprehensive operation manual and training materials
1) 24/7 online engineer support
2) One-year warranty (customer covers shipping for replacement parts)
3) Comprehensive operation manual and training materials
Q: Can you provide training for machine operation?
A: Yes, we offer free training in China. For international customers, we send professional engineers to provide on-site training during installation.
