Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Laser Wavelength:
1080
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Power Consumption:
3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Battery Laser Welding Machine
,
3 Years Warranty Laser Welding Machine
,
High Precision Battery Welding Machine
Product Description

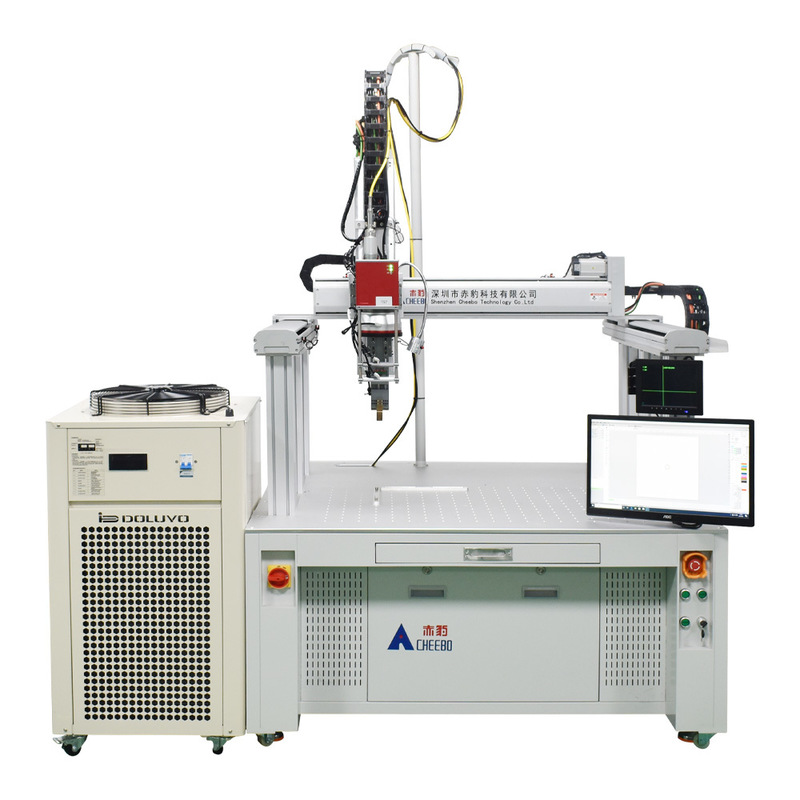

Automatic High Frequency Welding Machine Lithium Battery Pack Galvanometer Laser Welding Machine
This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, PC control system, etc. It can perform welding of any planar geometric shape trajectory such as points, lines, circles, etc. It is an efficient, safe, and stable high-power fiber laser welding machine that performs well in lithium battery welding process.
Key Features
- The continuous galvanometer laser welding machine uses the most advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum)
- Combined with our company’s independently developed gantry machine tool, it has excellent rigidity and stability
- Fiber lasers offer high beam quality, stability, reliability, low operating costs, and compact size
- High lifespan gantry dual drive motion platform with large surface travel welding range
- Precision guide rail transmission with high response servo motors for fast, accurate operation
- Laser welding produces fine spots, high melting depth, small taper, and smooth surfaces without bubbles
- PC industrial computer with user-friendly CNC programming system
- Adjustable laser power with low power consumption and minimal maintenance
- Automatic top pressure welding device reduces welding fixture requirements
- Optional CCD visual positioning system and automatic focal length measurement
Technical Specifications
| Laser power | 1500W/2000W/3000W/4000W/6000W | Welding speed | 10-100mm/s |
| Position accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating frequency | 30-5KHZ | Adjustable power range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid positioning accuracy | 1000mm/sec(XY axis), 500mm/sec(Z axis) |
| Coolant system | External water cooling | Operating mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power stability | ≦3% |
| Laser light output mode | CW/PWM | Laser power adjustment range | 1-100 |
| Laser focusing focal length | F=180mm | CCD positioning accuracy | 0.01mm(Optional) |
| Maximum machining size | 800*600mm/1000*800 | Ambient temperature | 5-45℃ |
| Fiber core | 20um/50pm/100pm(Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Overall dimension | L1343xW1454xH22235mm | Machine weight | About 500KG |
Product Details
Welding point monitoring, Autofocus

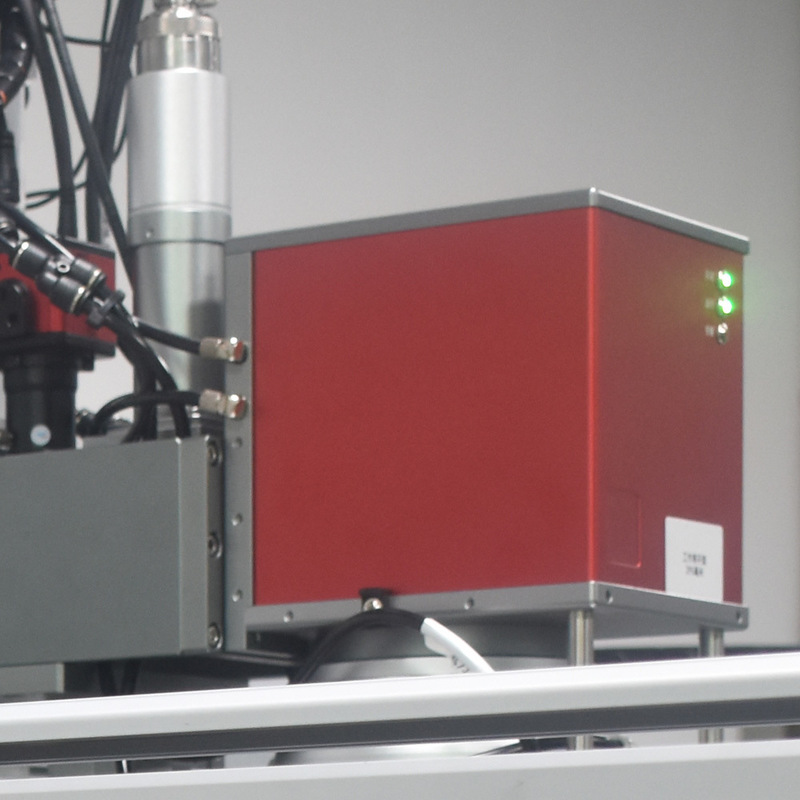

High precision welding joint of vibrating mirror
Rail module

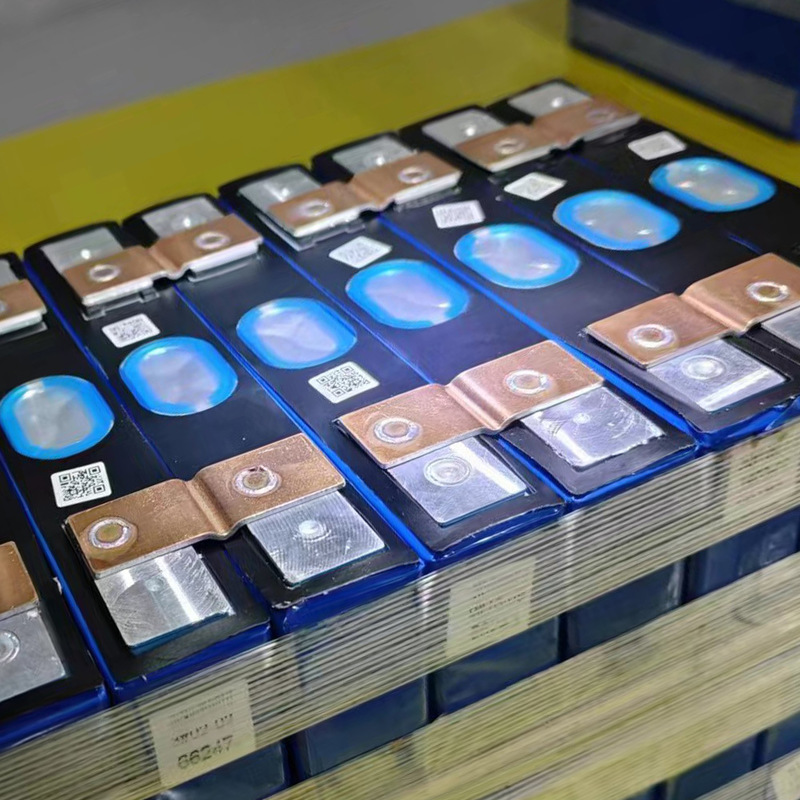

Welding product diagram
Frequently Asked Questions
Q: I don’t know which one suits me?
A: Please provide us with the following information: 1) Battery model and type. 2) Welding materials and welding thickness. We have extensive sales experience and can provide professional advice.
Q: How to install and run the machine?
A: Our technicians pre-install the machine before shipping. For minor components, we provide detailed training videos and user manuals. 95% of customers can self-learn the operation.
Q: What is your minimum order quantity?
A: We have no minimum order quantity. We support all order sizes with equal dedication.
Q: How is your factory’s quality control?
A: Quality is our priority. Each unit undergoes over 20 tests, with final QC verification of welding performance.
Q: What if there’s a problem with the machine?
A: Contact us immediately. Do not attempt repairs yourself. We respond within 24 hours to resolve any issues.
