Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Weight:
500 KG
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Laser Wavelength:
1080
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Battery Laser Welding Machine
,
1 Year Warranty Prismatic Battery Pack Laser Welder
,
3 Years Core Components Warranty Lithium Polymer Battery Laser Welding Machine
Product Description

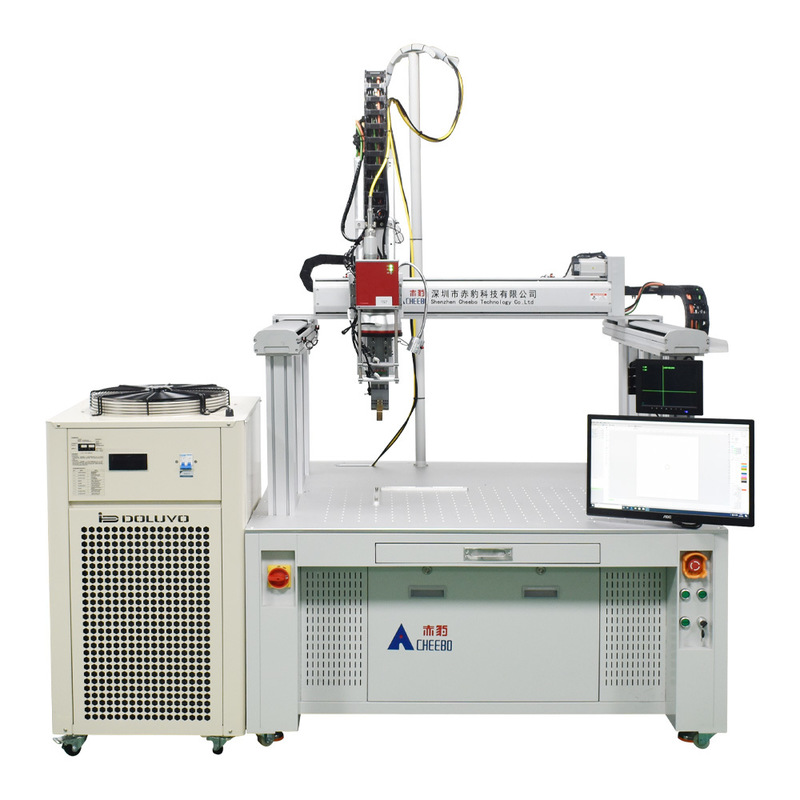

Automatic 1500W/2000W Prismatic Battery Pack Laser Welder
This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance in lithium battery welding applications.
Key Features
- Advanced fiber laser source specifically designed for high reflective materials (aluminum)
- Proprietary gantry machine tool design for superior rigidity and stability
- High beam quality with excellent stability and reliability
- Precision guide rail transmission with high-response servo motors
- Fine welding spots with high melting depth and minimal taper
- Pollution-free process with small heat affected zone
- User-friendly PC industrial computer with simple programming system
- Adjustable laser power with low energy consumption
- Optional CCD visual positioning and automatic focal length measurement
Technical Specifications
| Laser Power | 1500W/2000W/3000W/4000W/6000W |
|---|---|
| Welding Speed | 10-100mm/s |
| Position Accuracy | ±0.05mm |
| Laser Wavelength | 1080nm |
| Repositioning Accuracy | ±0.01mm |
| Cooling System | External water cooling |
| Maximum Machining Size | 800×600mm/1000×800mm |
| Machine Weight | Approx. 500KG |
Product Details

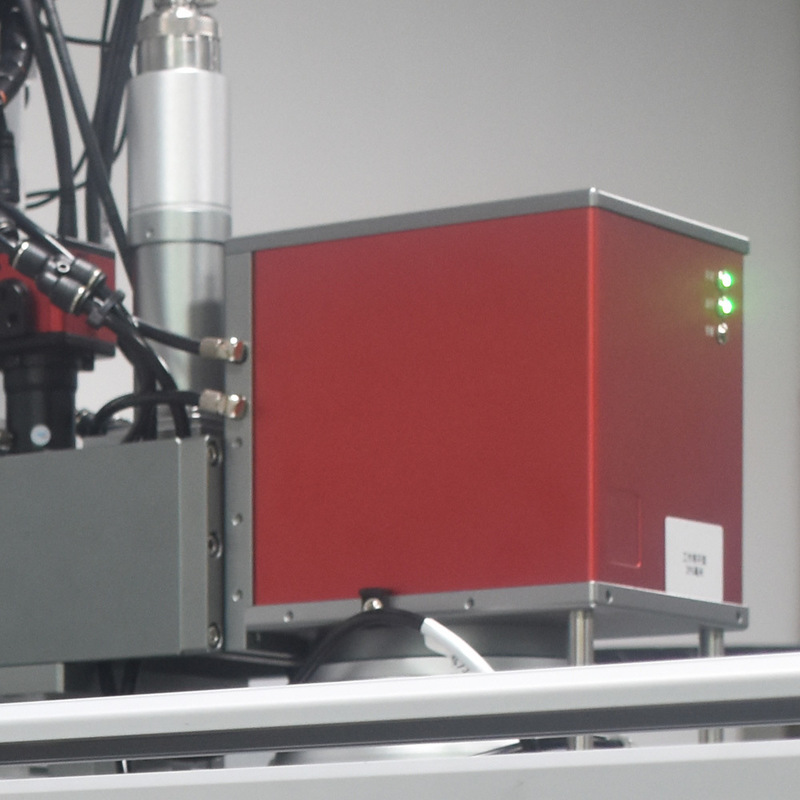

Welding Point Monitoring & Autofocus
High Precision Welding Joint
Rail Module
Welding Product Diagram
Frequently Asked Questions
Q: How do I know which model suits my needs?
A: Please provide your battery model/type and welding material/thickness specifications. Our experienced team will recommend the optimal solution.
Q: What’s included in machine installation?
A: Machines are pre-installed before shipping. We provide detailed training videos and manuals for minor component setup – 95% of customers can self-install.
Q: Is there a minimum order quantity?
A: No MOQ requirements – we support orders from single units to bulk purchases.
Q: How is quality controlled?
A: Each unit undergoes 20+ rigorous tests, with final QC verifying welding performance before shipment.
Q: What if I encounter technical issues?
A: Contact us immediately – our team responds within 24 hours. Avoid unauthorized repairs to prevent voiding warranty.
