Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Weight:
500 KG
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Laser Wavelength:
1080
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Battery Laser Welding Machine
,
18650 Laser Welding Machine
,
21700 Battery Laser Welder
Product Description
Automatic Prismatic Battery Pack Laser Welder
Lithium Polymer 18650 21700 Battery Laser Welding Machine for Pouch Cell 3000w
This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. It can perform welding of any planar geometric shape trajectory including points, lines, and circles. This efficient, safe, and stable high-power fiber laser welding machine excels in lithium battery welding processes.
Key Features
- Continuous galvanometer laser welding machine uses advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum)
- Combined with our company’s independently developed gantry machine tool for excellent rigidity and stability
- Fiber lasers offer high beam quality, stability, reliability, low operating costs, and compact size
- High lifespan gantry dual drive motion platform with large surface travel welding range
- Precision guide rail transmission with high response servo motors for fast, accurate operation
- Laser welding produces fine spots, high melting depth, small taper, and smooth surfaces without bubbles
- PC industrial computer with user-friendly welding CNC programming system
- Adjustable laser power with low power consumption and minimal maintenance requirements
- Automatic top pressure welding device reduces welding fixture requirements
- Optional CCD visual positioning system and automatic focal length measurement system
Technical Specifications
| Laser power | 1500W/2000W/3000W/4000W/6000W | Welding speed | 10-100mm/s |
|---|---|---|---|
| Position accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating frequency | 30-5KHZ | Adjustable power range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid positioning accuracy | 1000mm/sec(XY axis), 500mm/sec(Z axis) |
| Coolant system | External water cooling | Operating mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power stability | ≦3% |
| Laser light output mode | CW/PWM | Laser power adjustment range | 1-100 |
| Laser focusing focal length | F=180mm | CCD positioning accuracy | 0.01mm(Optional) |
| Maximum machining size | 800*600mm/1000*800 | Ambient temperature | 5-45℃ |
| Fiber core | 20um/50pm/100pm(Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Overall dimension | L1343xW1454xH22235mm | Machine weight | About 500KG |
Product Details

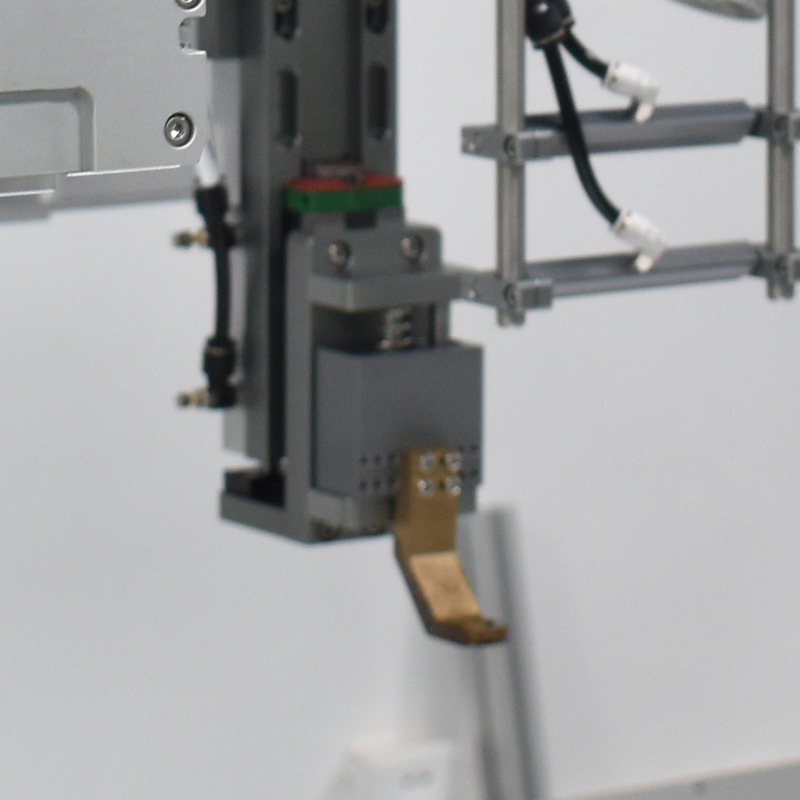

Welding Point Monitoring, Autofocus

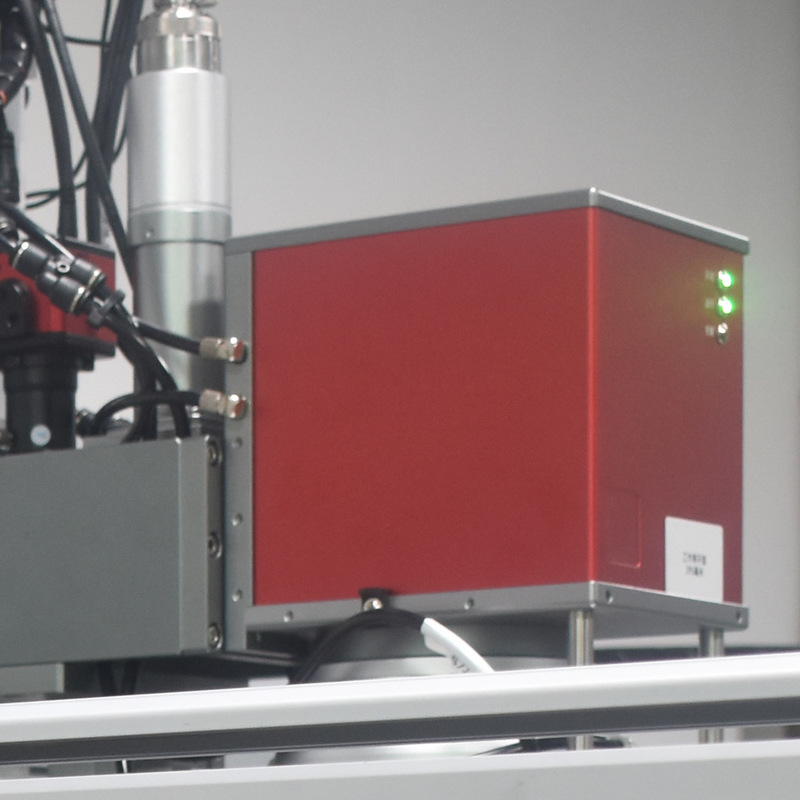

High Precision Welding Joint of Vibrating Mirror

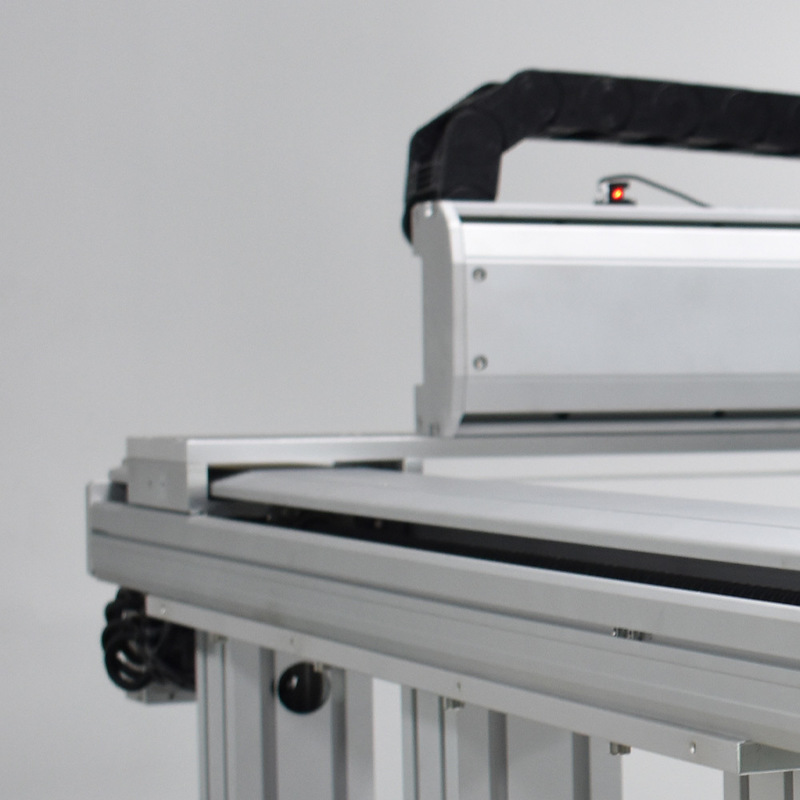

Rail Module

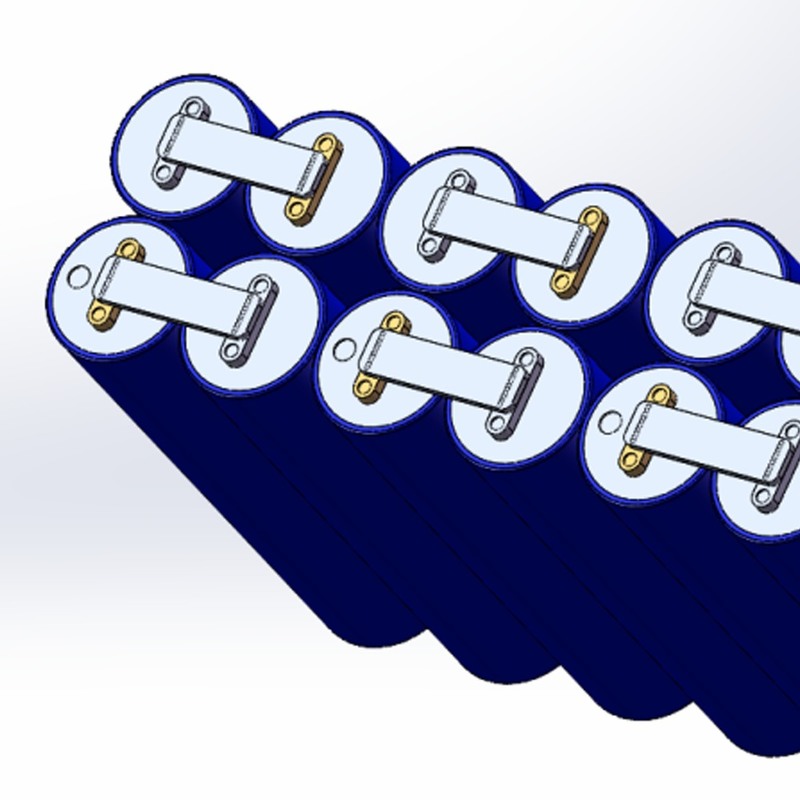

BWT Laser Welder – Welding Product Diagram
Frequently Asked Questions
Q: I don’t know which model suits my needs?
A: Please provide us with: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team can recommend the best solution.
Q: How to install and run the machine?
A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components. 95% of customers can self-learn.
Q: What is your minimum order quantity?
A: No minimum order quantity. We support orders from 1 unit to 100+ units with equal dedication.
Q: How is your quality control?
A: Quality first. Each unit undergoes 20+ tests, with final QC testing of welding performance before shipment.
Q: What if there’s a problem with the machine?
A: Contact us immediately. Do not attempt repairs yourself. We respond within 24 hours to resolve any issues.
