Description
Welding Needle C15760
,
C15760
,
Spot Welding Rods For Battery

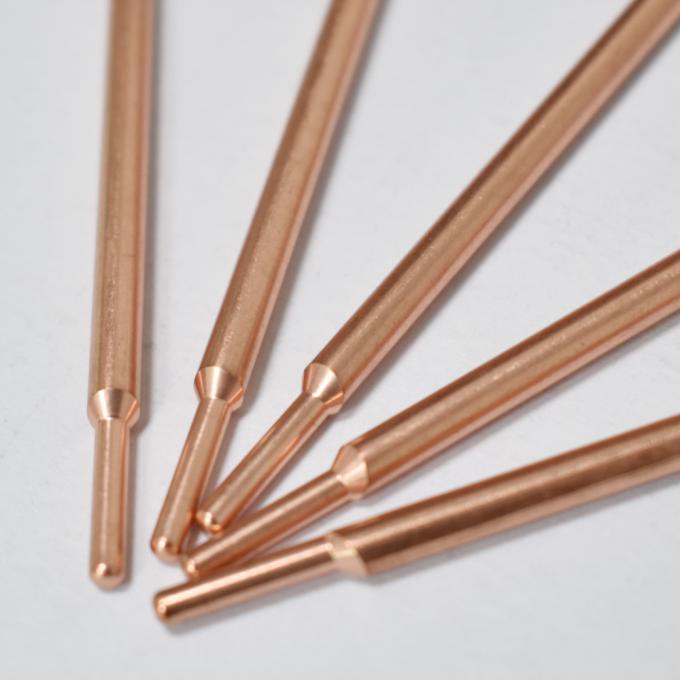

C15760 Welding Needle spot welder Aluminum oxide copper welding needle for battery
● It is suitable for spot welding between materials such as nickel strips, nickel-permeable steel sheets, and coated steel strips in the production of batteries. Spot welding of connecting pieces, cells and lead-in pieces in the production of batteries such as nickel gas batteries, nickel pot batteries, polymer batteries and rational batteries.
●Product Name: Aluminum Oxide Copper Spot Welding Needles, Touch Welding Needles
●Material: Domestic material, Taiwan material, Japanese material, American material.

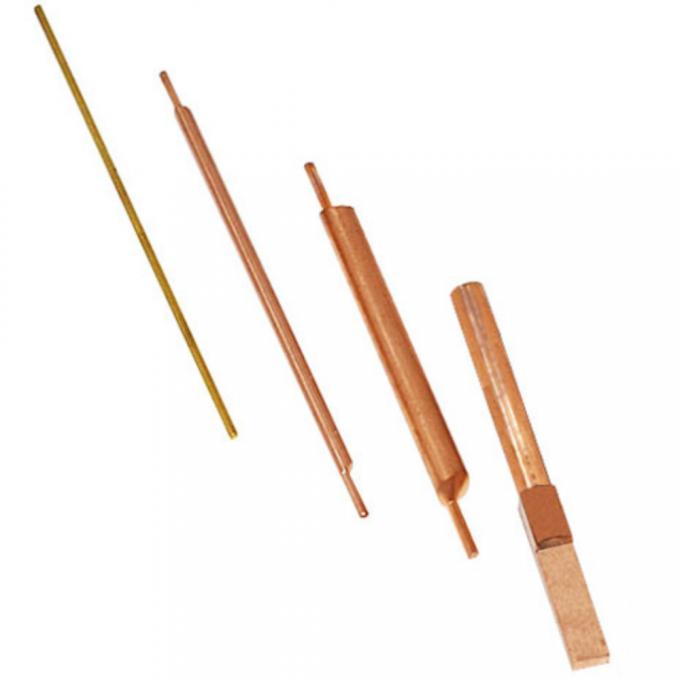

●Pin type: Off-center flat head, Off-center ball head, Same-center ball head, Straight baseball head, Straight bar, Other customization
All the welding needles produced by our factory are made of aluminum oxide copper.
● Resistance welding material–Nanometer alumina diffusion strengthened copper (aluminum oxide copper)
● Aluminum copper oxide—-specifically designed for spot welding of galvanized steel, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass, and so on.
● Alumina copper material is resistant to softening and ablation, long service life, high number of spot welding, electrode life is more than 5 times that of ordinary chrome zirconium copper, reducing downtime for electrode repair and grinding.
● Battery spot welder adopts alumina copper material welding needle, which improves the efficiency of automatic welding production line, and does not bond the electrode when welding coated metal, which provides a terminal solution for welding galvanized steel, and is an indispensable electrode material for welding galvanized steel, nickel-plated plate, nickel strip, aluminum alloy, stainless steel, brass and so on.
● Alumina copper welding needles softening temperature up to 930 ℃, is a relatively high alloy of copper, conductivity up to 85% IACS high strength, good wear resistance.
●Conductivity up to 85% IACS, heat dissipation performance between tungsten copper (220 W/m.k) and pure copper (390 W/m-k).
● Softening temperature up to 930 ℃, which is higher than that of copper alloys, but lower than tungsten copper (1000 ℃)
| Place of origin | Guangdong, China | Processing customization | Yes |
| Operating temperature | 25℃ | Type | Through/Eccentric/convex (optional) |
| Model number | C15760 | Length | 100MM (customizable) |
| Melting point | 930℃ | Diameter | 1.7MM (customizable) |
| Material | Aluminum oxide copper | Scope of application | Metal welding |
Function Introduction
1.Seiko Production
Deep processing, smooth surface, stable welding point without virtual welding, solid welding point
2.Professional customization
Years of processing experience combined with the actual situation of customers to meet customer customization requirements
3. High quality material
imported alumina copper material is more wear resistant to burning, longer service life
- Avoid sticky electrode phenomenon
- No yellowing of the welding area, beautiful welding joints
- Avoid the occurrence of false welding phenomenon
- Reduce the phenomenon of welding sparks
- Excellent electrical and thermal conductivity and good high temperature performance
- Passed the EU ROHS environmental certification standard
