Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Laser Wavelength:
1080
Weight:
500 KG
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Output Power Battery Laser Welding Machine
,
1080 Wavelength Laser Welding Platform
,
3 Years Warranty Fiber Laser Welder
Product Description

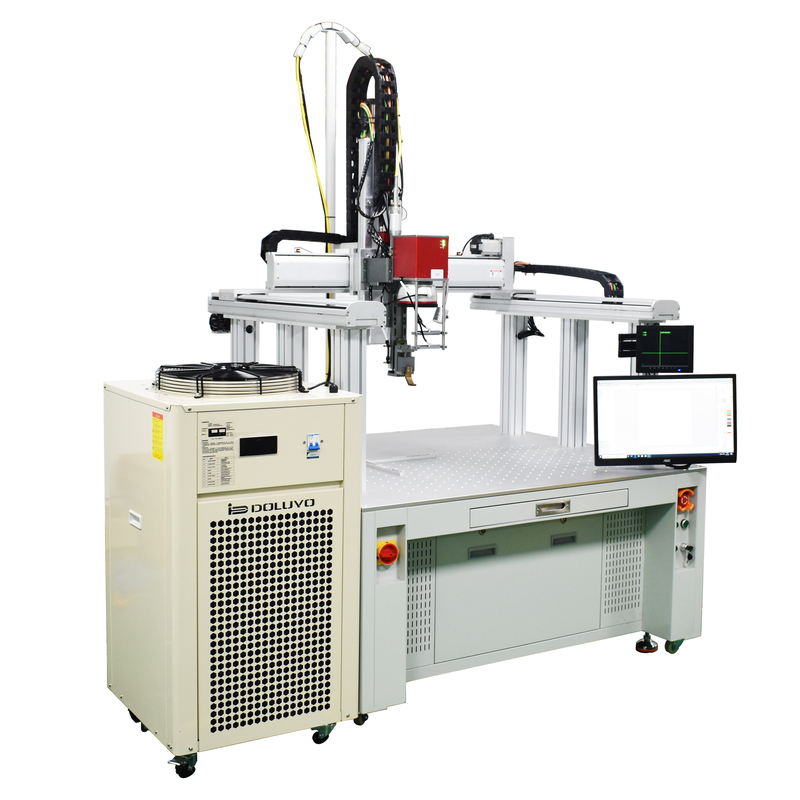

Square Lithium Battery 18650 Battery Laser Welding Fully Automatic Platform
This high-performance fiber laser welding machine integrates critical components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of executing precise welds in various planar geometric shapes (points, lines, circles), it delivers exceptional performance for lithium battery welding applications.
Key Features
- Advanced fiber laser source optimized for high reflective materials (aluminum)
- Proprietary gantry machine tool design for superior rigidity and stability
- High beam quality with excellent stability, reliability, and low operating costs
- High-precision gantry dual-drive motion platform with large welding range
- Precision guide rail transmission with high-response servo motors
- Fine weld spots with deep penetration, minimal taper, and smooth surfaces
- PC industrial computer with user-friendly CNC programming system
- Adjustable laser power with low energy consumption and minimal maintenance
- Optional CCD visual positioning and automatic focal length measurement systems
Technical Specifications
| Laser Power | 1500W/2000W/3000W/4000W/6000W | Welding Speed | 10-100mm/s |
|---|---|---|---|
| Position Accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating Frequency | 30-5KHZ | Adjustable Power Range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid Positioning Speed | 1000mm/sec (XY axis), 500mm/sec (Z axis) |
| Coolant System | External water cooling | Operating Mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power Stability | ≦3% |
| Laser Output Mode | CW/PWM | Maximum Machining Size | 800*600mm/1000*800mm |
| Laser Focusing Focal Length | F=180mm | Ambient Temperature | 5-45℃ |
| Fiber Core | 20um/50pm/100pm (Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Dimensions | L1343xW1454xH22235mm | Machine Weight | About 500KG |

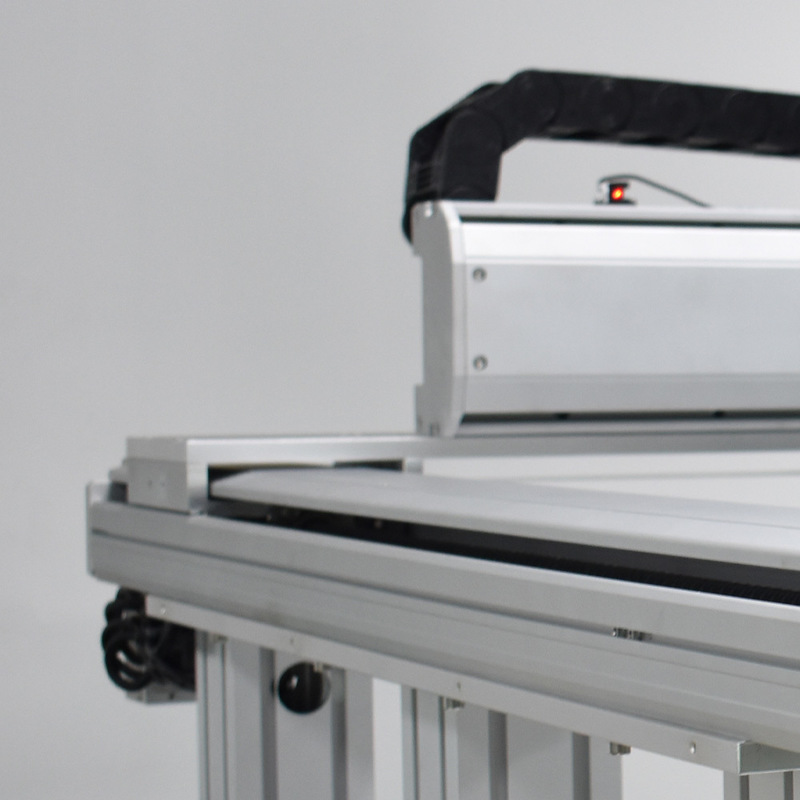

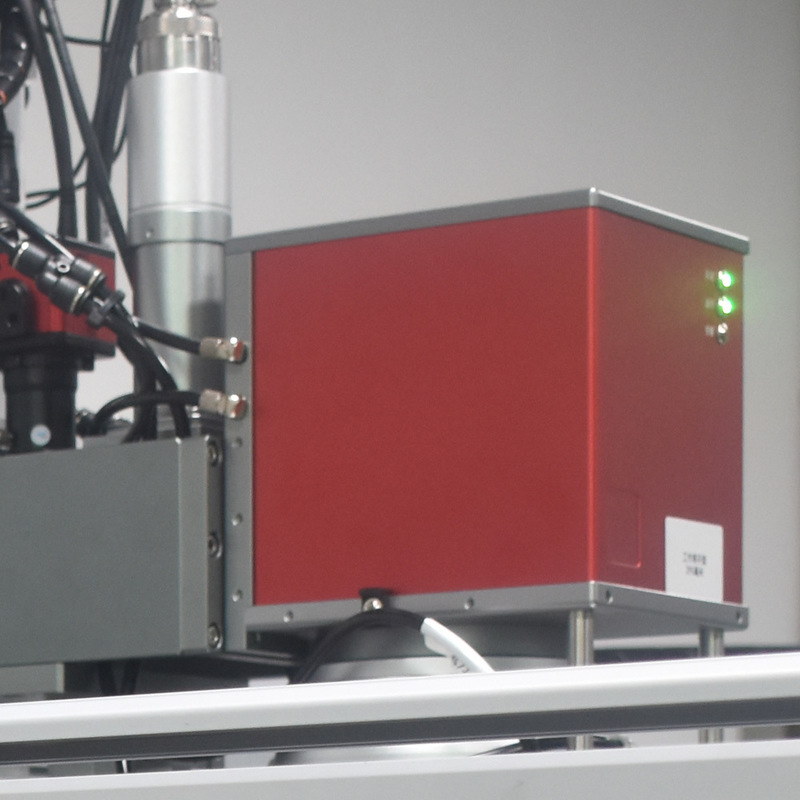

Product Images
Frequently Asked Questions
Q: How do I know which model is right for my application?
A: Please provide us with: 1) Your battery model and type, and 2) Welding materials and thickness. Our experienced team can recommend the optimal solution.
Q: What’s included in machine installation?
A: Our technicians pre-install the machine before shipping. We include detailed training videos and user manuals for minor component setup – 95% of customers can self-install.
Q: Is there a minimum order quantity?
A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.
Q: How do you ensure product quality?
A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance parameters before shipment.
Q: What if I encounter technical issues?
A: Contact us immediately – do not attempt repairs yourself. We guarantee a response within 24 hours to resolve any issues.
