Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Wavelength:
1080
Weight:
500 KG
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Output Power Fiber Laser Welding Machine
,
1080 Wavelength Fiber Laser Welding Machine
,
1 Year Warranty Fiber Laser Welding Machine
Product Description

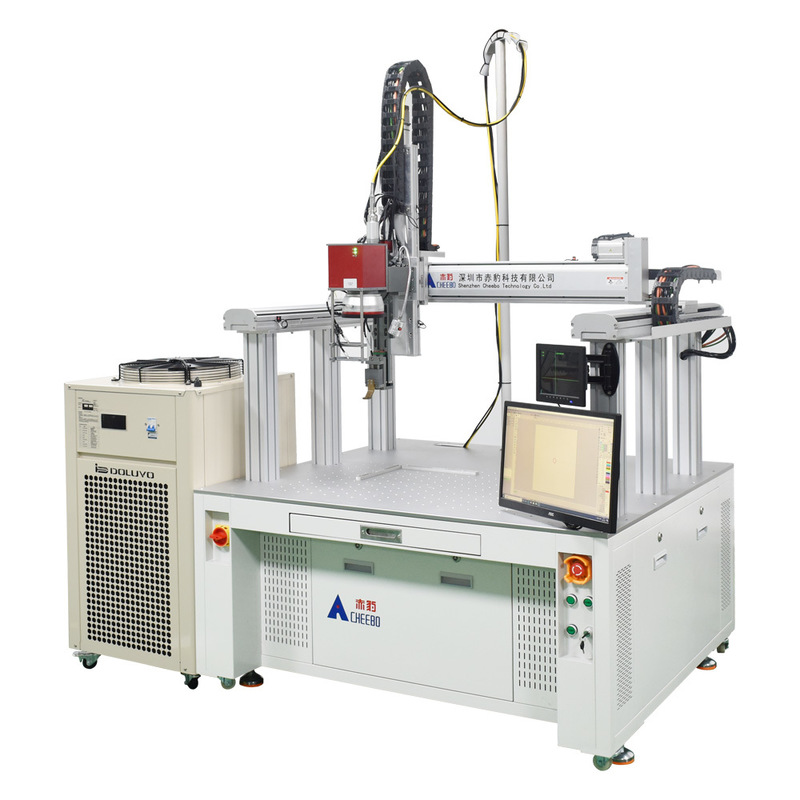

Fully Automatic Fiber Laser Welding Machine

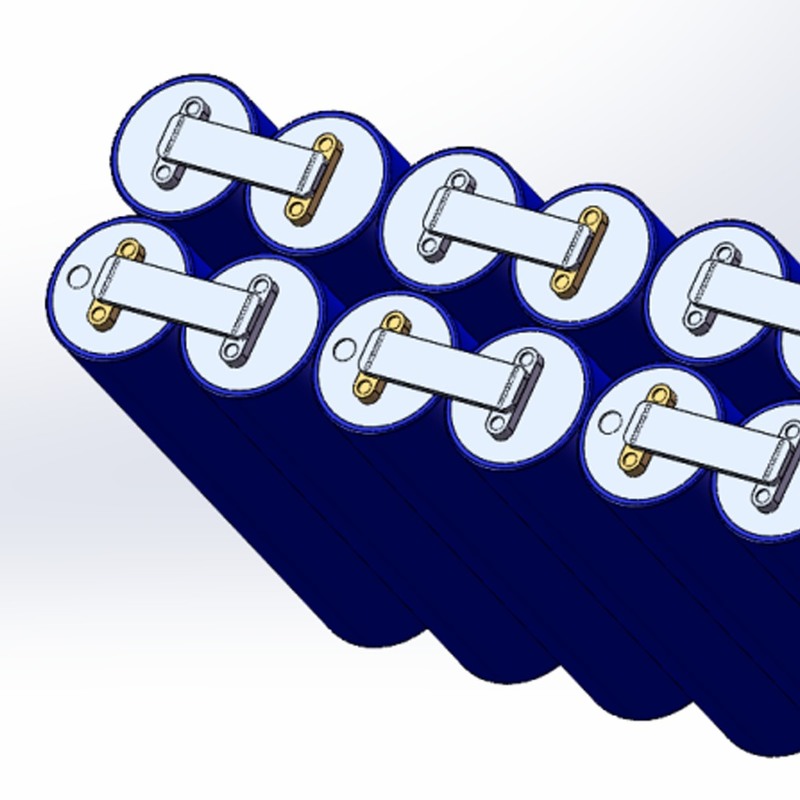

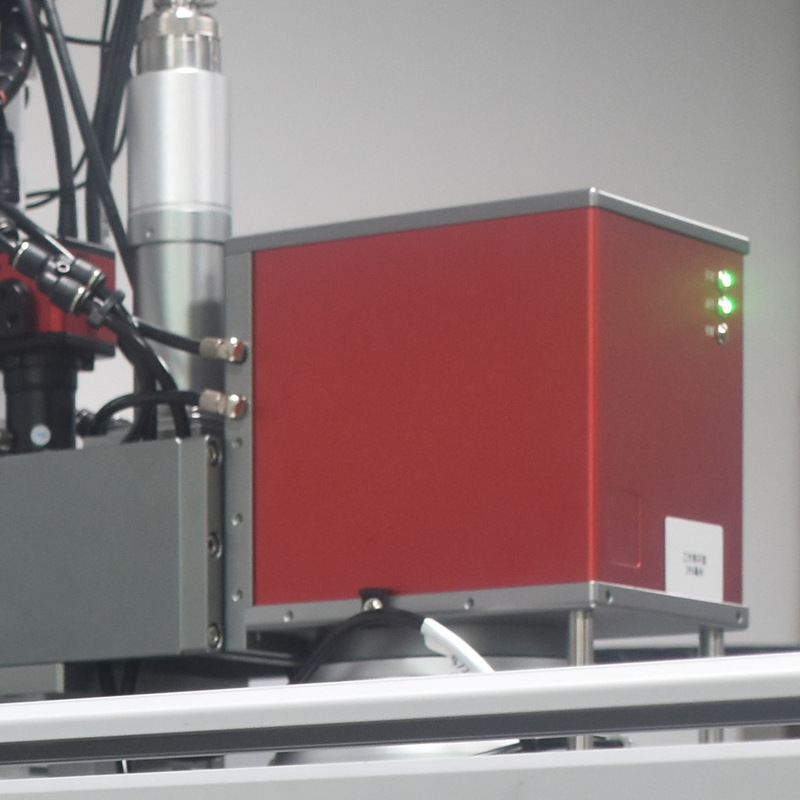

This table top square battery pack fiber laser welding machine integrates important components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly suited for lithium battery welding processes.
Key Features
- Advanced fiber laser source specifically designed for high reflective materials (aluminum)

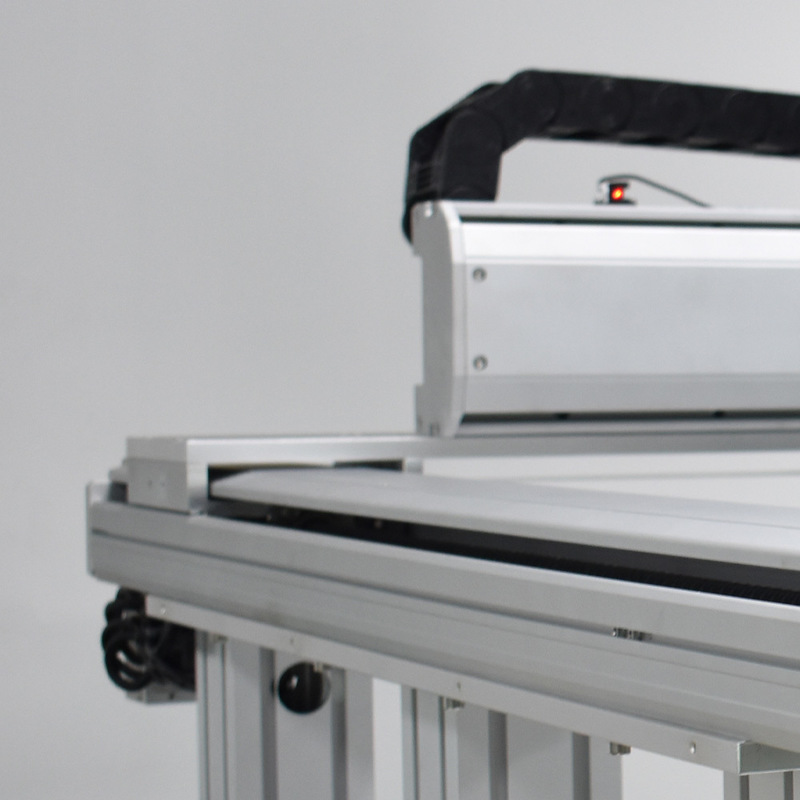

- Gantry machine tool with excellent rigidity and stability
- High beam quality, stability, reliability, and low operating costs
- High lifespan gantry dual drive motion platform with large welding range
- Precision guide rail transmission with high response servo motors
- Fine laser spots with high melting depth and smooth welding surface
- PC industrial computer with user-friendly CNC programming system
- Adjustable laser power with low power consumption and minimal maintenance
- Optional CCD visual positioning and automatic focal length measurement systems
Technical Specifications
| Laser power | 1500W/2000W/3000W/4000W/6000W | Welding speed | 10-100mm/s |
|---|---|---|---|
| Position accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating frequency | 30-5KHZ | Adjustable power range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid positioning accuracy | 1000mm/sec(XY axis), 500mm/sec(Z axis) |
| Coolant system | External water cooling | Operating mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power stability | ≦3% |
| Laser light output mode | CW/PWM | Laser power adjustment range | 1-100 |
| Laser focusing focal length | F=180mm | CCD positioning accuracy | 0.01mm(Optional) |
| Maximum machining size | 800*600mm/1000*800 | Ambient temperature | 5-45℃ |
| Fiber core | 20um/50pm/100pm(Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8 KW(4000W)/10KW(6000W) |
| Overall dimension | L1343xW1454xH22235mm | Machine weight | About 500KG |
Product Gallery
Frequently Asked Questions
Q: I don’t know which model suits my needs?
A: Please provide us with: 1) Battery model and type, 2) Welding materials and thickness. Our experienced sales team can recommend the best solution.
Q: How to install and operate the machine?
A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components – 95% of customers can self-learn.
Q: What is your minimum order quantity?
A: No minimum order quantity – we fully support orders from 1 to 100+ units.
Q: How is your quality control?
A: Quality first. Each unit undergoes 20+ tests, with final QC verifying welding performance before shipment.
Q: What if there’s a problem with the machine?
A: Contact us immediately – do not attempt repairs yourself. We guarantee response within 24 hours to resolve any issues.
