Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Laser Wavelength:
1080
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis), 500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Power Consumption:
3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Battery Laser Welding Machine
,
High Precision Laser Welding Platform
,
3 Years Warranty Lithium Battery Laser Welder
Product Description

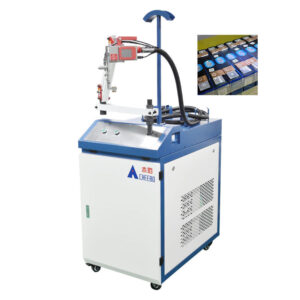

Customized High-quality Lithium Battery Pack Laser Welding Platform
This advanced laser welding platform integrates fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape including points, lines, and circles, it delivers efficient, safe, and stable high-power fiber laser welding performance ideal for lithium battery applications.
Key Features
- Continuous galvanometer laser welding with advanced fiber laser source, specially designed for high reflective materials (aluminum)
- Gantry machine tool with excellent rigidity and stability for precise welding
- High beam quality, stability, reliability, and low operating costs
- High lifespan gantry dual drive motion platform with large welding range
- Precision guide rail transmission with high-response servo motors
- Fine welding spots with high melting depth and minimal taper
- PC industrial computer with user-friendly CNC programming system
- Adjustable laser power with low power consumption and minimal maintenance
- Optional CCD visual positioning and automatic focal length measurement systems
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Laser power | 1500W/2000W/3000W/4000W/6000W | Welding speed | 10-100mm/s |
| Position accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating frequency | 30-5KHZ | Adjustable power range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid positioning accuracy | 1000mm/sec(XY axis), 500mm/sec(Z axis) |
| Coolant system | External water cooling | Operating mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power stability | ≦3% |
| Laser light output mode | CW/PWM | Laser power adjustment range | 1-100 |
| Laser focusing focal length | F=180mm | CCD positioning accuracy | 0.01mm(Optional) |
| Maximum machining size | 800*600mm/1000*800 | Ambient temperature | 5-45℃ |
| Fiber core | 20um/50pm/100pm(Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Overall dimension | L1343xW1454xH22235mm | Machine weight | About 500KG |
Product Details
Welding Point Monitoring & Autofocus
High Precision Welding Joint
Rail Module
Welding Product Diagram
Frequently Asked Questions
Q: How do I know which model suits my needs?
A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will advise you.
Q: How is the machine installed and operated?
A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components – 95% of customers can self-learn.
Q: What is your minimum order quantity?
A: No MOQ – we fully support orders from 1 to 100+ units.
Q: How do you ensure quality control?
A: Each unit undergoes 20+ tests. Our QC team verifies welding performance after all tests pass.
Q: What if I encounter machine problems?
A: Contact us immediately – do not attempt repairs. We respond within 24 hours to resolve issues.
