Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Wavelength:
1080
Weight:
500 KG
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Gantry Laser Welding Machine
,
1080 Wavelength Battery Laser Welding Machine
,
3 Years Warranty Automatic Laser Spot Welder
Product Description
Gantry Laser Welding Machine for Prismatic Lithium Battery Pack Aluminum Nickel Busbar Automatic Laser Spot Welder
This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. It performs welding of any planar geometric shape trajectory (points, lines, circles) and is an efficient, safe, and stable high-power fiber laser welding machine optimized for lithium battery welding processes.
Key Features
- Continuous galvanometer laser welding machine with advanced fiber laser source, specially designed for high reflective materials (aluminum)
- Combined with our proprietary gantry machine tool design for excellent rigidity and stability
- Fiber lasers offer high beam quality, stability, reliability, low operating costs, and compact size
- High lifespan gantry dual drive motion platform with large surface travel welding range
- Precision guide rail transmission with high-response servo motors for fast, accurate operation
- Laser welding produces fine spots, high melting depth, small taper, and smooth surfaces without bubbles
- PC industrial computer with user-friendly CNC programming system
- Adjustable laser power with low power consumption and minimal maintenance requirements
- Optional CCD visual positioning system and automatic focal length measurement
Technical Specifications
| Laser Power | 1500W/2000W/3000W/4000W/6000W | Welding Speed | 10-100mm/s |
|---|---|---|---|
| Position Accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating Frequency | 30-5KHZ | Adjustable Power Range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid Positioning Accuracy | 1000mm/sec (XY axis), 500mm/sec (Z axis) |
| Coolant System | External water cooling | Operating Mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power Stability | ≦3% |
| Laser Output Mode | CW/PWM | Laser Power Adjustment Range | 1-100 |
| Laser Focusing Focal Length | F=180mm | CCD Positioning Accuracy | 0.01mm (Optional) |
| Maximum Machining Size | 800*600mm/1000*800 | Ambient Temperature | 5-45℃ |
| Fiber Core | 20um/50pm/100pm (Optional) | Overall Power Consumption | 3.5KW (2000W)/5.5KW (3000W)/8KW (4000W)/10KW (6000W) |
| Overall Dimension | L1343xW1454xH22235mm | Machine Weight | About 500KG |

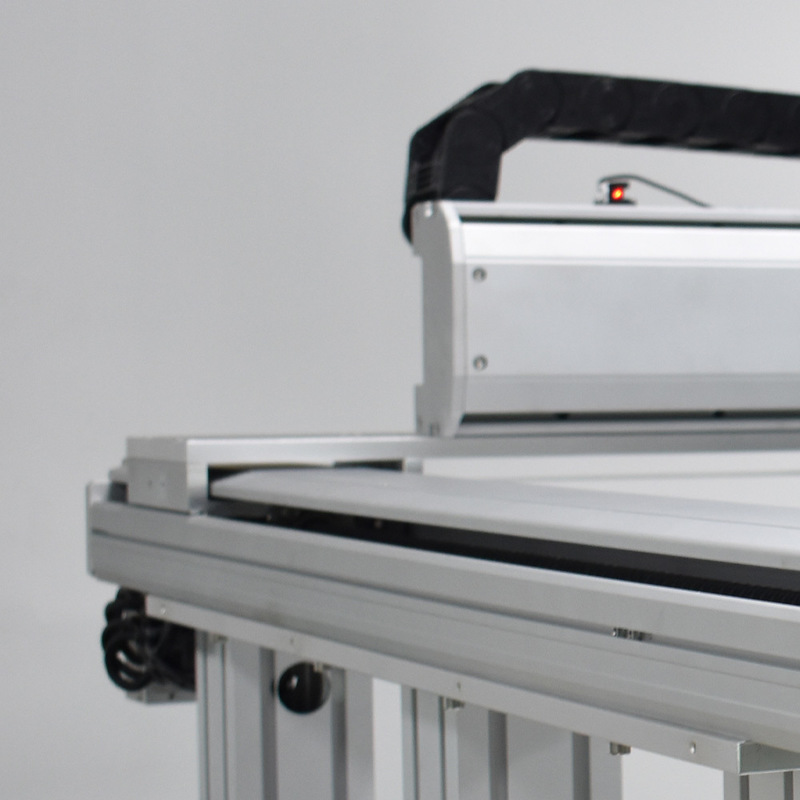

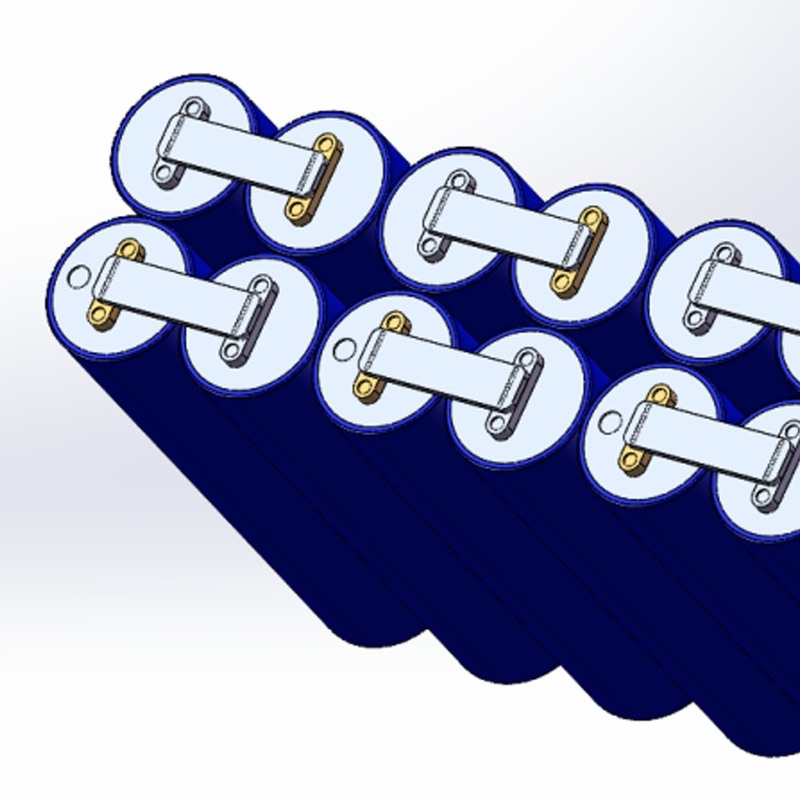

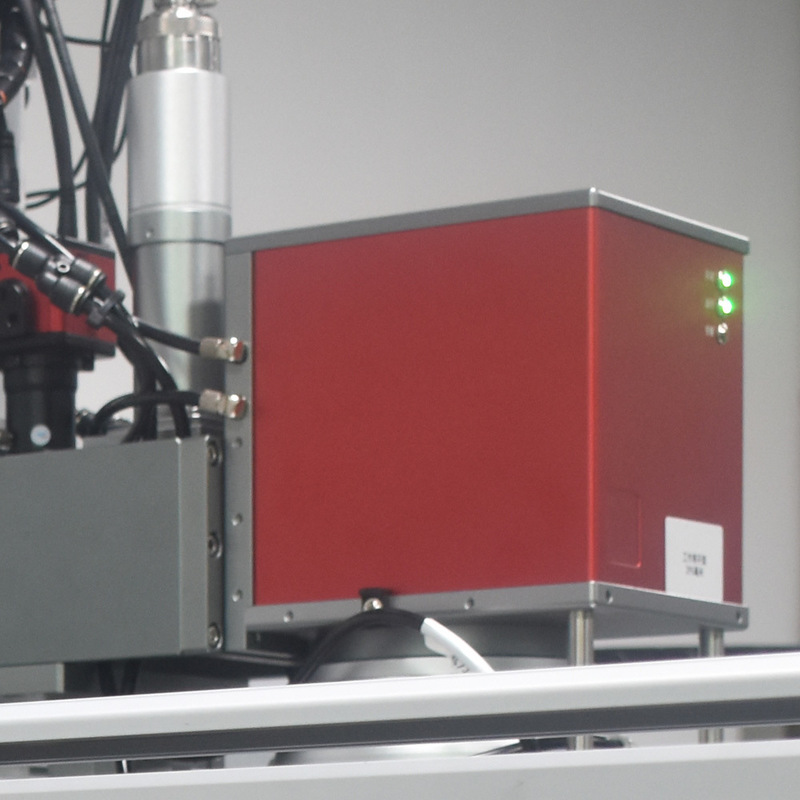

Product Images
Frequently Asked Questions
Q: I don’t know which model suits my needs?
A: Please provide us with: 1) Battery model and type, 2) Welding materials and thickness. Our experienced sales team will recommend the optimal solution.
Q: How to install and operate the machine?
A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components. 95% of customers can self-learn the operation.
Q: What is your minimum order quantity?
A: No minimum order quantity. We fully support orders from 1 unit to 100+ units.
Q: How is your quality control?
A: Quality first. Each unit undergoes 20+ tests, with final QC verifying welding performance before shipment.
Q: What if there’s a problem with the machine?
A: Contact us immediately. Do not attempt repairs yourself. We guarantee a response within 24 hours to resolve any issues.
