Description
Detail Information
Place of Origin:
Guangdong, China
Output Power:
6000W
Wavelength:
1080
Weight:
500 KG
Laser Power:
1500W/2000W/3000W/4000W/6000W
Welding Speed:
10-100mm/s
Position Accuracy:
±0.05mm
Regulating Frequency:
30-5KHZ
Adjustable Power Range:
10-100%
Repositioning Accuracy:
±0.01mm
Rapid Positioning Accuracy:
1000mm/sec(XYaxis)、500mm/sec(Zaxis)
Beam Quality:
<1.4㎡
Power Stability:
≦3%
Laser Focusing Focal Length:
F=180mm
Maximum Machining Size:
800*600mm/1000*800
Overall Dimension:
L1343xW1454xH22235mm
Highlight:
6000W Laser Welding Machine
,
1080 Wavelength Laser Welding Machine
,
3 Years Warranty Laser Welding Machine
Product Description

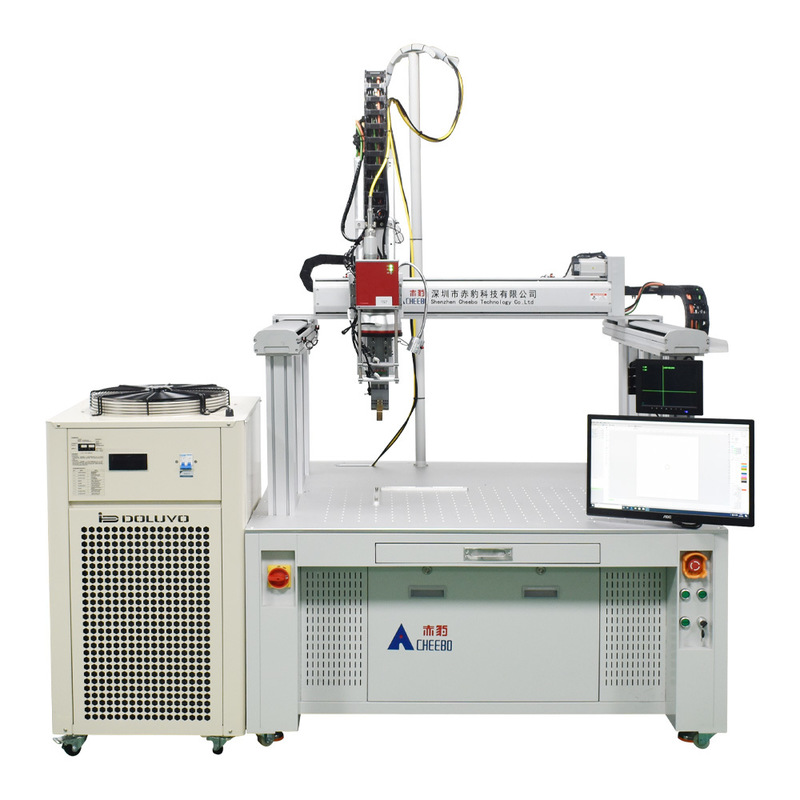

High Quality 3 in 1 Laser Welding Cleaning Cutting Machine

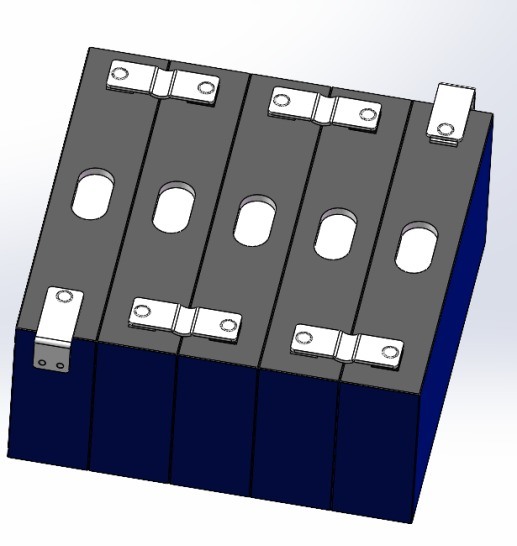

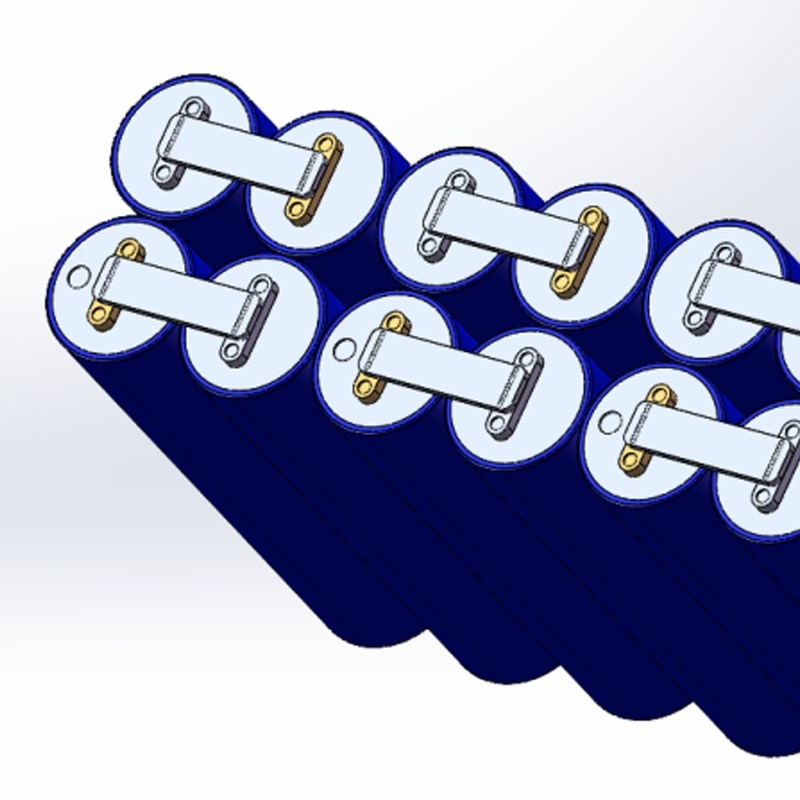

This advanced fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power performance, particularly effective for lithium battery welding processes.
Key Features
- Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)

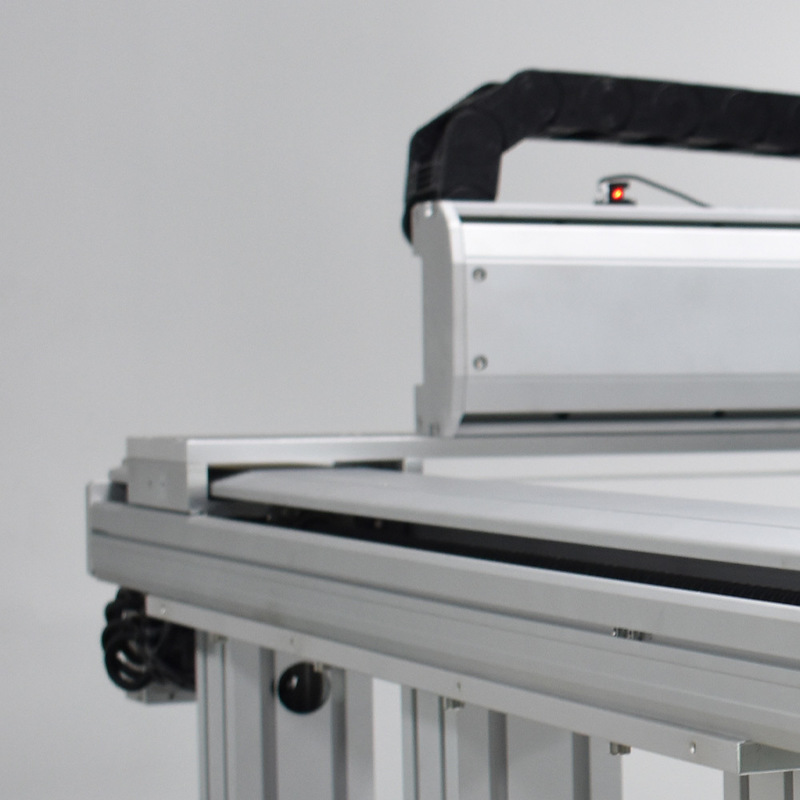

- Combined with our proprietary gantry machine tool design for exceptional rigidity and stability
- High beam quality with stable, reliable performance and low operating costs
- Precision guide rail transmission with high-response servo motors for accuracy and speed
- Fine welding spots with deep melting depth, minimal taper, and smooth surface finish
- PC industrial computer with user-friendly CNC programming system
- Adjustable laser power with low power consumption and minimal maintenance
- Optional CCD visual positioning system and automatic focal length measurement
Technical Specifications
| Laser Power | 1500W/2000W/3000W/4000W/6000W |
|---|---|
| Welding Speed | 10-100mm/s |
| Position Accuracy | ±0.05mm |
| Laser Wavelength | 1080 |
| Regulating Frequency | 30-5KHZ |
| Adjustable Power Range | 10-100% |
| Repositioning Accuracy | ±0.01mm |
| Coolant System | External water cooling |
| Beam Quality | <1.4㎡ |
| Maximum Machining Size | 800*600mm/1000*800 |
| Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Dimensions | L1343xW1454xH22235mm |
| Weight | Approx. 500KG |
Product Images
Frequently Asked Questions
Q: How do I know which model suits my needs?
A: Please provide your battery model/type and welding materials/thickness. Our experienced team will recommend the optimal solution.
Q: What’s included in machine installation?
A: Our technicians pre-install machines before shipping. We include detailed training videos and manuals – 95% of customers can self-install remaining components.
Q: Is there a minimum order quantity?
A: No MOQ – we fully support orders from 1 to 100+ units.
Q: How is quality controlled?
A: Each unit undergoes 20+ rigorous tests. Our QC team verifies welding performance after all tests pass.
Q: What if I encounter technical issues?
A: Contact us immediately – don’t attempt repairs. We guarantee 24-hour response to resolve any problems.
