Description
Cell Sorting Machine 26700
,
Cylindrical Cell Sorting Machine
,
Battery Sorting Machine 26700

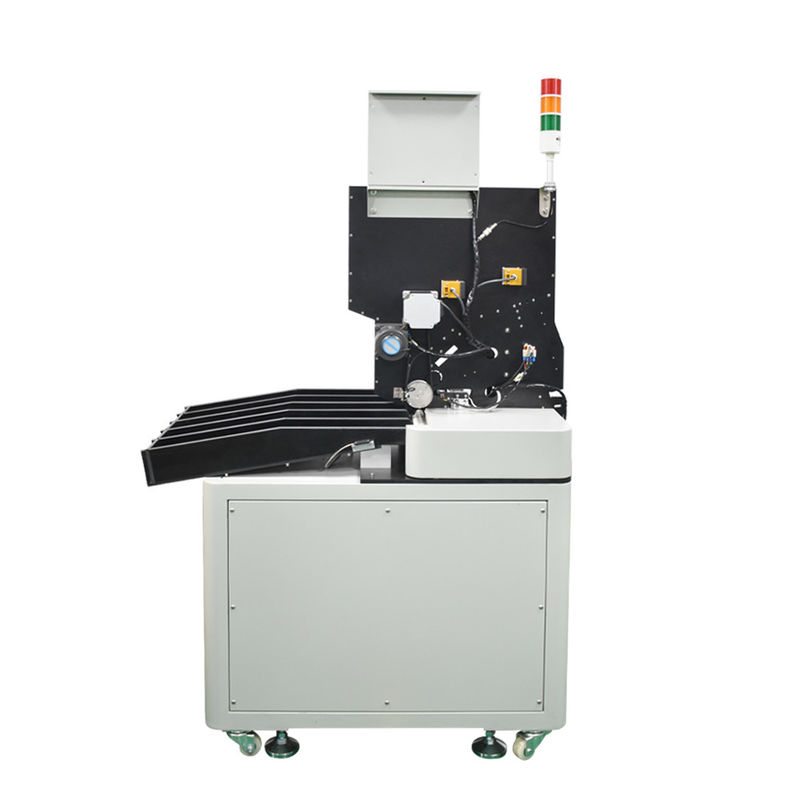

5 Gear Cylindrical Cell Sorting Machine High Precision Test Universal Type
● This battery sorting machine is suitable for automatic sorting equipment for voltage and internal resistance testing of cylindrical batteries of various specifications.
● Multiple battery types can be used:18650/21700/26650/26700/32650/32700 models.
● The CBFXH-05 lithium battery separator can separate over 4000 finished cylindrical batteries per hour.
● Easy-to-operate interface with one-key generation function. All you need is the initial voltage resistance and input the corresponding interval to complete the parameter setting.
● Mitsubishi PLC + imported Panasonic servo control unit + 4 probes design, high-end configuration, stable performance, long service life and low failure rate.
● Adopting high-definition touch screen computer, easy and convenient human-machine interaction.
● Interface reserved for connection with paper machine, can be directly connected with paper machine, saving labour cost. ●PLC + upper computer control mode, upper computer real-time display and record cell sorting data.
● Fault message reminding function, sound and light alarm for fault, can diagnose fault quickly.
● With manual parameter modification function, each gear can be fine-tuned, or adjusted using the one-key modification function.
● Slope design for sorting gears, open material opening, easy to collect material and improve production efficiency.
● Aluminium alloy structure with electrostatic spraying process, scratch resistant, rust proof and anti-static.
The battery cell is put into the bin — the test wheel runs to the test position — the test cylinder moves — the test needle presses to the battery cell —
the tester reads the data — transfers to the computer — the computer matches the gear — the battery cell is transferred to the sorting belt —
the sorting belt runs to the specified gear — the gear cylinder moves to push the battery cell out
| Production efficiency | 50-70PPM | Air source specification | 1/CFM |
| Applicable battery specifications | Diameter: 18-32; Length: 65-70 | Transmission mode | belt transmission |
| Sort the gears | 4+1 | Product loss rate | 0 |
| SBM Series | HIOKI3561/HOPE350 | Frame material | Aluminium alloy |
| Voltage accuracy | 0.1% (according to the internal resistance meter) | Machine Dimensions | 1600*600*1650MM |
| Internal resistance accuracy | 0.5%(depending on internal resistance meter) | Machine Weight | 220KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery sorting |
1. Operating interface
Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.
2. Inspection and testing organization
4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

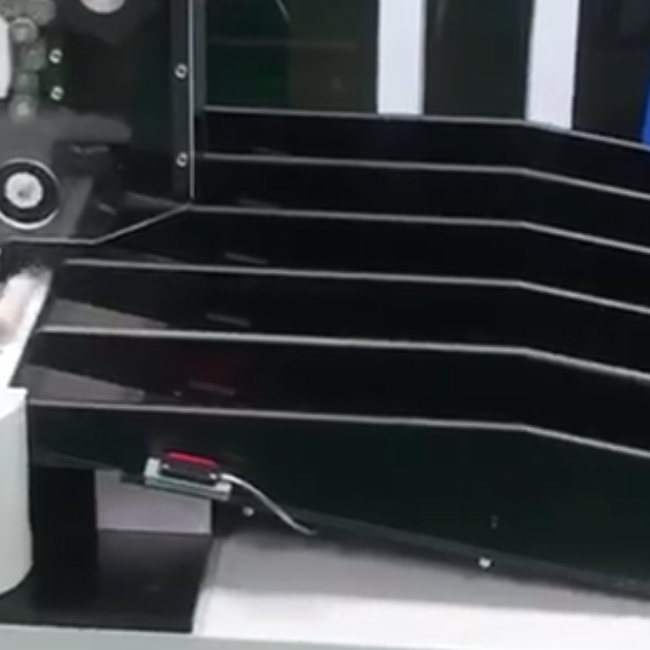

3. Italic design
The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q:What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q :How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
