Description
Detail Information
Place of Origin:
Guangdong, China
Compatible Cell Models:
18650/21700/32700/26650/32650
Dimensions:
11600*1000*1730MM (L*W*H)
Total Power:
220V 50/60Hz 6KW
Use Air Pressure:
0.5-0.8Mpa
Production Efficiency:
3000PCS/H (Automatic Part)
CCD Detection Field:
400*300MM (Max)
CCD Lens Pixel:
2000W
Spot Welder Stroke:
500*360MM (Max)
Cell Sorting Channels:
6+1
Nickel Sheet Thickness:
0.02-0.3MM
Number Of Stickers:
4PCS (Depends On Cell Type)
User Interface:
Touch Screen
Manpower Required:
3-5 People
Line Color:
Ivory White (Customizable)
Welding Thickness:
0.02-0.3MM
Highlight:
18650 battery pack assembly line
,
automatic battery pack production
,
3000PCS/H battery assembly line
Product Description

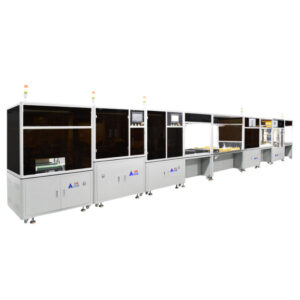

18650 Cylindrical Lithium Battery Fully Automatic Battery Pack Production Line Equipment
Key Features
- Simple and quick operation
- Comprehensive after-sales service
Product Overview
Technical Specifications
Compatible cell models:
18650/21700/32700/26650/32650, etc Cylindrical cell
Dimensions:
11600*1000*1730MM (L*W*H)
Line color:
Ivory white (Customizable)
Total power:
220V 50/60Hz 6KW
Use air pressure:
0.5-0.8Mpa
Production efficiency:
3000PCS/H (Automatic part)
CCD detection field:
400*300MM (Max)
CCD lens pixel:
2000W
Spot welder welding stroke:
500*360MM (Max)
Cell sorting channels:
6+1
Nickel sheet welding thickness:
0.02-0.3MM
Number of stickers (Each time):
4PCS (Depends on cell type)
User interface:
Touch screen
Manpower required:
3-5 people
Applications
- Power tool battery pack
- Energy storage battery pack
- Electric vehicle battery pack (including but not limited to)
Frequently Asked Questions
Q: I don’t know which one is right for me?
A: Please tell us the following information:
- What type of cell do you want to assemble? What is its model number?
- Capacity and volume of battery pack?
- How many battery packs should be produced per day
Q: How do I install and run the machine?
A: Our technicians install the machine before shipment. For installation of some widgets, we provide detailed training videos and user manuals. 95% of customers can teach themselves.
Q: What can we offer you?
A: Equipment and resources for lithium battery pack assembly.
Q: What’s your minimum order quantity?
A: We don’t have a minimum order quantity. Whether it’s an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. Each unit undergoes more than 20 tests. After all tests are passed, our QC tests the welding performance.
Q: When the machine can’t work well, what should I do?
A:
- Our engineers are available 24/7 to diagnose problems and provide solutions
- All machines have a one-year warranty. For problems under normal use, we will send replacement parts (customer pays shipping)
- Operation CD and manual provided with machine for easy operation
Q: If we don’t know how to use the machine, can you teach us?
A: Yes, we provide free training in China until you can use the machine freely. For international customers, we send a professional engineer to train your staff during installation.
