100V 120A Semi-Finished Battery Pack Tester High Precision Test




Detail Information







Place of Origin:

China




Certification:

CE certification





Voltage Range:

0-100V





Internal Resistance Range:

0-2000MQ





Charging Current:

0-300A





Discharge Current:

0-500A





Overcurrent Delay Time:

0-30S





Short Circuit Time:

0-2000uS


















Supply Ability:

50 Set/Sets per   Week












Highlight:

Semi-Finished Battery Pack Tester
,
100V 120A Battery Pack Tester






Product Description

100V120A Semi-Finished Battery Pack Tester High Precision Test



Equipment introduction

The testing instrument has two main functions, namely battery production testing mode and calibration mode. Therefore, this device can be used as an electronic load and a comprehensive testing instrument.



The specific testing items are: testing the battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharge current, continuous discharge voltage, charging over current protection current, discharge over current protection current, short circuit protection time, over current delay time, and voltage after testing. The device uses an infrared scanning gun bar code input (SN) to start the test or automatically starts the test when voltage is detected.



Scope of application: For lithium-ion batteries equipped with (CH+P+CH - P -), all series of power batterie



Test item







Open circuit battery voltage

Battery AC internal resistance

Continuous charging current




Overcurrent delay time

Continuous discharge voltage

Continuous discharge current




Short-circuit protection time

Discharge overcurrent protects the current




Post-test voltage

Charging current Protects the current






Technical specification












Voltage range :0-100V

Resolution :1mV

Accuracy :0.1%RD+0.1FS




Internal resistance range :0-2000MQ

Resolution :0.001MQ

Accuracy :0.1%RD+0.1FS




Charging current :0-300A

Resolution :0.001A

Accuracy :0.1%RD+0.1FS




Discharge current :0-500A

Resolution :0.001A

Accuracy :0.1%RD+0.1FS




Overcurrent delay time :0-30S

Resolution :2mS

Accuracy :0.1%RD+0.1FS




Short circuit time :0-2000uS

Resolution :1uS

Accuracy :0.1%RD+0.1FS




NTC range :0-100K

R1 range :0-100K

Equipment operating voltage :AC200V-240V




Maximum working power :5000W(maximum current charge)

Maximum working power :5000W(maximum current charge)








Device operation process description

Battery pack welding completed BMS -- comprehensive tester select the correct test template -- Connect P+/C+/P-/C -- Special crocodile clamp for testing -- Connect NTC special crocodile clamp -- Click Start test



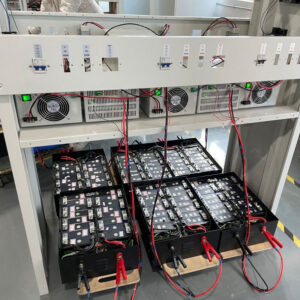

Equipment detail drawing
